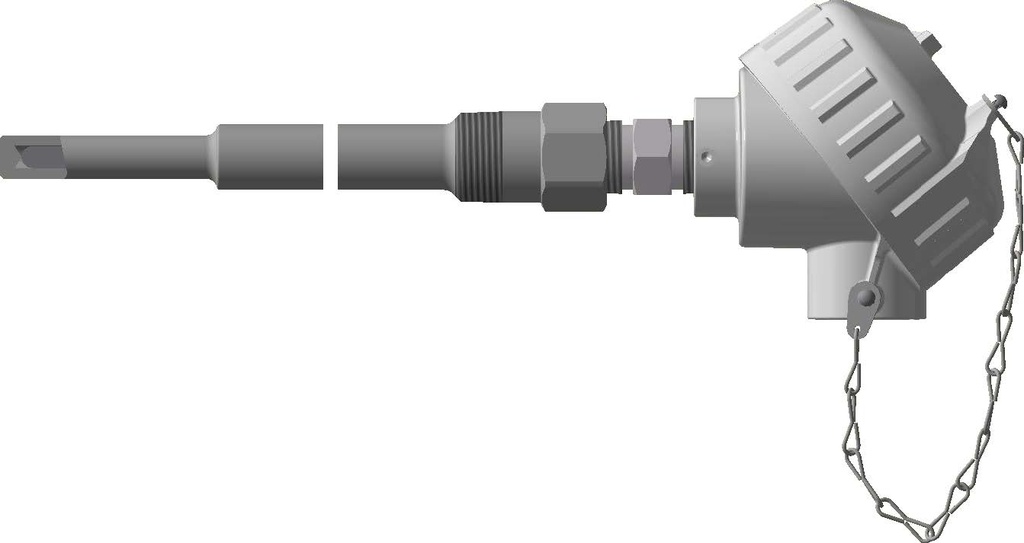

Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD x 12" Thermowell (SS, 3/4 NPT), PP Head
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Class B
Temperature Range -50 to 200 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
304 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 12 Inches
U Dimension: 10(1/2) Inches
Self-contained Spring-loaded Element
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
White Polypropylene Head
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Class B
Temperature Range -50 to 200 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
304 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 12 Inches
U Dimension: 10(1/2) Inches
Self-contained Spring-loaded Element
1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
White Polypropylene Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Class B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Hex Nipple, Spring-Loaded, Self-Contained |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 12 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Enclosure Rating | NEMA 4X |
| RTD: Has Thermowell | Yes |
| RTD: Cover / Head Material | PP |
| RTD: Min Temp | -302 °F |
| RTD: Max Temp | 392 °F |
