Description

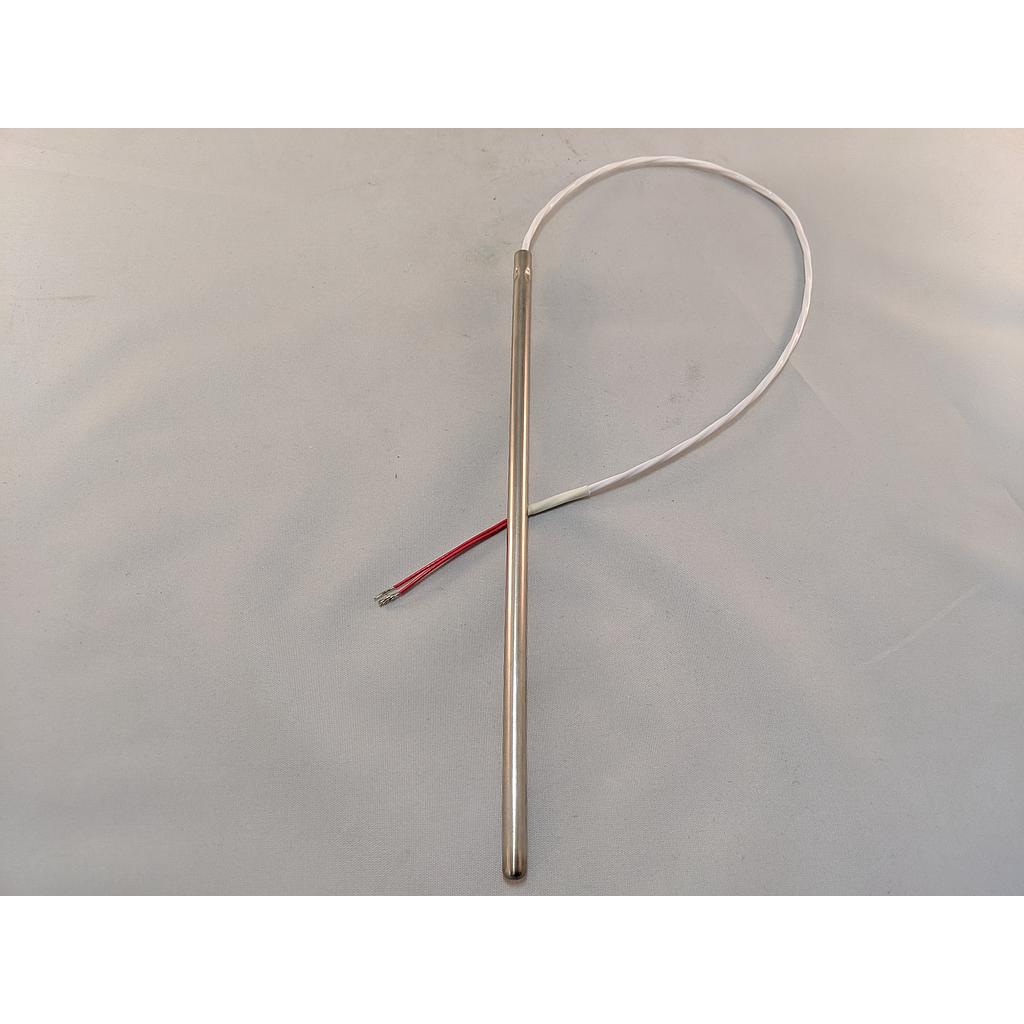

RTD Sensor Style RB Style RTD
Outside Diameter [in] J - .250 Inch
Sheath Type A = 316/316L SS Tube
PFA Over Sheath None
Element Type A - 100 ohms Single 2-Wire
Initial Element Accuracy @ 0°C A - DIN Class A (+/-0.06%)
Mounting Options None
Bend Option Straight Length
Sheath Length [L] (In) 6.500
Lead Wire Construction B - PFA Stranded
Lead Wire Length in inches 12
Lead Wire Termination T - Standard Leads
Sheath Cold End Style None-Smooth
Insulated Singles Length 1.0
Tag Style 0 - Polymeric Flag Tag
Calibrate Sensor No
Specifications
| RTD: Brand | Watlow |
| RTD: Accuracy | Class A |
| RTD: Circuit Type | Single 2-Wire |
| RTD: Electrical Connection | PFA / Stranded Conductor Leadwire |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 6.5 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Has Thermowell | No |
| RTD: Min Temp | -58 °F |
| RTD: Max Temp | 500 °F |
