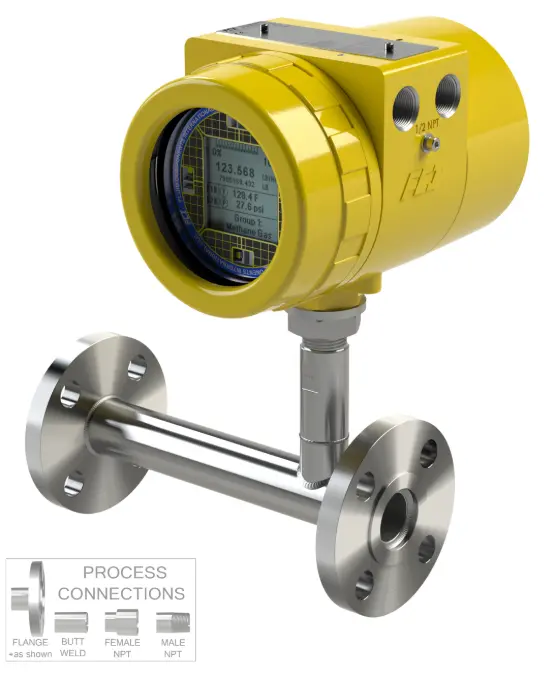

Representative photo. Please check item description for details.

FCI ST100AL Series In-Line Thermal Mass Flow Meter

[7] Flow Element: 250°F [121°C] -S Style, 316L Stainless Steel

[3] In-Line Body Material of Construction: 316L Stainless Steel; all welded connection of sensor element

[G] In-Line Body Type / Diameter: 1-1/2" Pipe Sch 40, Length: 13-1/2"|343mm

[F000] Process Connection: Flange; Carbon Steel ANSI 1-1/2" 150 lb

[F] Pipe Mounting and Flow Direction: Horizontal Pipe; Top Mount, L>R

[1] Transmitter Enclosure: Integral Mount, Aluminum; with NPT Cable Entries

[0] Interconnecting Cable Length: Not Required - Integral Mount

[H] Transmitter Power Supply and Display: 85 VAC to 265 VAC; with Digital Display and 4 Button, Through the Window Interface

[3E] Transmitter Outputs and Communications: (3) 4-20 mA Outputs; HART, Modbus; Frequency/Pulse Output; Ethernet Port

[E] Calibration Application: Custom Calibration: Nitrogen, Helium, C02, Nitrous Oxide, Oxygen

[A] Calibration, Set-Up and Conditions: Extended Temperature Compensation

[0] Second Calibration Application: Not Required

[0] Second Calibration, Set-Up and Conditions: Not Required

[0] Additional Calibration Groups: Not Required

[1] Agency Approval: FM

This combination does not exist.
