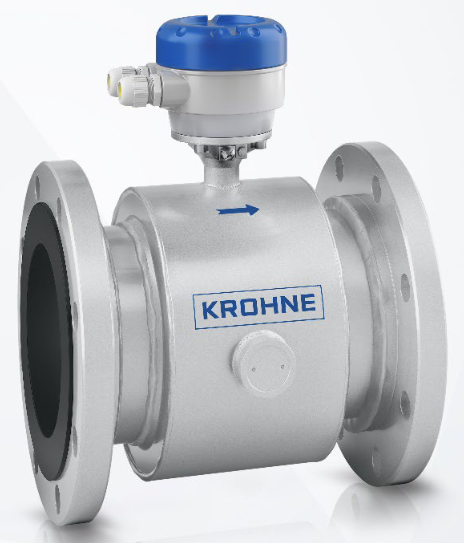

[VB144] KROHNE Enviromag 2000 Water/Wastewater Electromagnetic Flow Sensor
Representative photo. Please check item description for details.

[VB144] KROHNE Enviromag 2000 Water/Wastewater Electromagnetic Flow Sensor

https://www.branom.com/web/image/product.template/561382/image_1920?unique=c1b9893
(0 review)

The ENVIROMAG 2000 is an electromagnetic flowmeter. The magmeter is the optimum solution for North American water and wastewater measurement applications. Its design and performance makes it the instrument of choice for flow measurement throughout the process.


  • Nominal Diameter
  • Nominal Pressure
  • Ex Approval
  • Design
  • Converter Model
  • Lining
  • Electrodes
  • Electrode Construction
  • Housing / Flange Material
  • Protection Class
  • Signal Cable
  • Cable Length
  • Calibration
  • Grounding Ring (x2)
  • Finish
  • Markings
  • Construction Requirements
  • QA/QC Requirements
  • Extended Nominal Diameter
  • Ratio of CT-Calibration
  • Instruction Language
  • Tag Plate
  • Destination
  • Flange Material
  • Reserve Option

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Datasheet 2

Share

The ENVIROMAG 2000 is an electromagnetic flowmeter. The magmeter is the optimum solution for North American water and wastewater measurement applications. Its design and performance makes it the instrument of choice for flow measurement throughout the process.

Specifications

Nominal Diameter [4] DN25 | 1", [5] DN32 | 1-1/4", [6] DN40 | 1-1/2", [7] DN50 | 2", [8] DN65 | 2-1/2", [A] DN80 | 3", [B] DN100 | 4", [C] DN125 | 5", [D] DN150 | 6"
Nominal Pressure [A] 150 lb RF ASME B 16.5, [B] 300 lb RF ASME B 16.5
Ex Approval [0] without, [A] CSA Ordinary Location
Design [0] Compact Converter with Aluminum Housing, [2] Compact Converter with Stainless Steel Housing, [4] Remote Converter with Aluminum Junction Box - 1/2" NPT, [A] Remote Converter with Stainless Steel Junction Box - 1/2" NPT
Converter Model [3] IFC 100 C - Compact Mount, [4] IFC 100 W - Wall Mount, [C] IFC 300 C - Compact Mount, [D] IFC 300 F - Field Mount, [E] IFC 300 W - Wall Mount, [F] IFC 300 R - Rack Mount, [K] IFC 050 C - Compact Mount, [L] IFC 050 W - Wall Mount
Lining [0] Hard Rubber, [D] Polyurethane - 2", [D] Polyurethane - 2-1/2", [D] Polyurethane - 3", [D] Polyurethane - 4", [D] Polyurethane - 5", [D] Polyurethane - 6"
Electrodes [B] Hastelloy C22, [2] Stainless Steel 1.4401|316, [4] Hastelloy B2, [5] Tantalum, [6] Titanium, [7] Platinum
Electrode Construction [2] Exchangeable, [2] non-Exchangeable
Housing / Flange Material [1] Sheet Steel / Carbon Steel, [2] Sheet Steel / Stainless Steel 1.4306|304L - 1", [3] Sheet Steel / Stainless Steel 1.4404|316L - 1", [2] Sheet Steel / Stainless Steel 1.4306|304L - 1-1/4", [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/4", [2] Sheet Steel / Stainless Steel 1.4306|304L - 1-1/2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/2", [2] Sheet Steel / Stainless Steel 1.4306|304L - 2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 2", [2] Sheet Steel / Stainless Steel 1.4306|304L - 2-1/2", [3] Sheet Steel / Stainless Steel 1.4404|316L - 2-1/2", [2] Sheet Steel / Stainless Steel 1.4306|304L - 3", [3] Sheet Steel / Stainless Steel 1.4404|316L - 3", [2] Sheet Steel / Stainless Steel 1.4306|304L - 4", [3] Sheet Steel / Stainless Steel 1.4404|316L - 4", [2] Sheet Steel / Stainless Steel 1.4306|304L - 5", [3] Sheet Steel / Stainless Steel 1.4404|316L - 5", [2] Sheet Steel / Stainless Steel 1.4306|304L - 6", [3] Sheet Steel / Stainless Steel 1.4404|316L - 6", [1] Sheet Steel / Carbon Steel - 1" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 1" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1" Class 300, [1] Sheet Steel / Carbon Steel - 1-1/4" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 1-1/4" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [1] Sheet Steel / Carbon Steel - 1-1/2" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 1-1/2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [1] Sheet Steel / Carbon Steel - 2" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 2" Class 300, [1] Sheet Steel / Carbon Steel - 2-1/2" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 2-1/2" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [1] Sheet Steel / Carbon Steel - 3" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 3" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 3" Class 300, [1] Sheet Steel / Carbon Steel - 4" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 4" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 4" Class 300, [1] Sheet Steel / Carbon Steel - 5" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 5" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 5" Class 300, [1] Sheet Steel / Carbon Steel - 6" Class 300, [2] Sheet Steel / Stainless Steel 1.4306|304L - 6" Class 300, [3] Sheet Steel / Stainless Steel 1.4404|316L - 6" Class 300
Protection Class [0] IP66/67, [2] IP68
Signal Cable [0] none - Compact Converter, [0] DS - Double Shielded, [1] BTS - Triple Shielded
Cable Length [0] none - Compact Converter, [0] 15ft DS Signal Cable, [1] 30ft DS Signal Cable, [2] 45ft DS Signal Cable, [3] 60ft DS Signal Cable, [4] 75ft DS Signal Cable, [5] 90ft DS Signal Cable, [6] 120ft DS Signal Cable, [7] 150ft DS Signal Cable, [8] 300ft DS Signal Cable, [0] 15ft DS Signal Cable + LIYCY Coil Power Cable, [1] 30ft DS Signal Cable + LIYCY Coil Power Cable, [2] 45ft DS Signal Cable + LIYCY Coil Power Cable, [3] 60ft DS Signal Cable + LIYCY Coil Power Cable, [4] 75ft DS Signal Cable + LIYCY Coil Power Cable, [5] 90ft DS Signal Cable + LIYCY Coil Power Cable, [6] 120ft DS Signal Cable + LIYCY Coil Power Cable, [7] 50ft DS Signal Cable + LIYCY Coil Power Cable, [8] 300ft DS Signal Cable + LIYCY Coil Power Cable
Calibration [0] 2-Point Calibration, [1] 2-Point Calibration w/ 304 SS Tagplate (67 x 25mm), [2] 2-Point Calibration w/ 316 SS Tagplate (120 x 46mm), [3] 2-Point Calibration w/ 316 SS Tagplate (67 x 25mm)
Grounding Ring (x2) [0] without, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1", [2] Grounding Ring #1 / Hastelloy C4 - 1", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/4", [2] Grounding Ring #1 / Hastelloy C4 - 1-1/4", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/4", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/2", [2] Grounding Ring #1 / Hastelloy C4 - 1-1/2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2", [2] Grounding Ring #1 / Hastelloy C4 - 2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2-1/2", [2] Grounding Ring #1 / Hastelloy C4 - 2-1/2", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2-1/2", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 3", [2] Grounding Ring #1 / Hastelloy C4 - 3", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 3", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 4", [2] Grounding Ring #1 / Hastelloy C4 - 4", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 4", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 5", [2] Grounding Ring #1 / Hastelloy C4 - 5", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 5", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 6", [2] Grounding Ring #1 / Hastelloy C4 - 6", [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 6", [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 1" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 1-1/4" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/4" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 1-1/2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 1-1/2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 2-1/2" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 2-1/2" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 3" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 3" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 3" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 4" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 4" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 4" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 5" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 5" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 5" Class 300, [6] Grounding Ring #1 / Stainless Steel 1.4404|316L - 6" Class 300, [2] Grounding Ring #1 / Hastelloy C4 - 6" Class 300, [E] Insertion Ring #3 / Stainless Steel 1.4404|316L - 6" Class 300
Finish [0] Standard, [5] Direct Burial Coating - 1", [5] Direct Burial Coating - 1-1/4", [5] Direct Burial Coating - 1-1/2", [5] Direct Burial Coating - 2", [5] Direct Burial Coating - 2-1/2", [5] Direct Burial Coating - 3", [5] Direct Burial Coating - 4", [5] Direct Burial Coating - 5", [5] Direct Burial Coating - 6"
Markings [0] Krohne Blue
Construction Requirements [0] Standard
QA/QC Requirements [0] Standard
Extended Nominal Diameter [0] without
Ratio of CT-Calibration [0] Standard
Instruction Language [0] English/German
Tag Plate [0] Standard
Destination [0] Standard
Flange Material [0] Standard
Reserve Option [0] without
