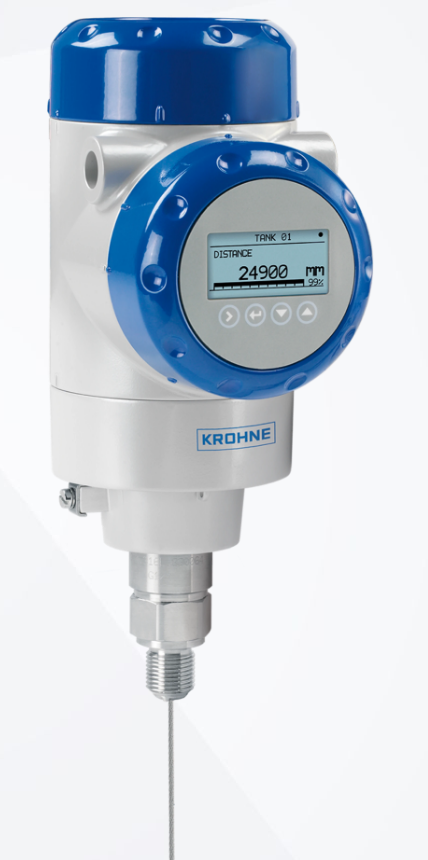

Representative photo. Please check item description for details.
Description
[VFAA40W] Optiflex 7200 Guided Wave TDR Level Transmitter
[B] Ex Approval: cQPSus XP-IS/DIP-IS CL I DIV 1 GP A-G + CL I Z1 AEx db ia/Ex db ia IIC T6…T* Gb + Z21 AEx ia tb/Ex ia tb IIIC T85°C…T*°C Db
[0] SIL Approvals: without
[0] ISO Construction Standards: without
[2] Converter Version: Compact version (aluminum housing - IP66/IP68)
[1] Outputs: 2-wire 4-20mA passive HART
[C] Cable Entry/Gland: 1/2 NPT Nickel-Plated Brass Adaptor / without
[61] Display: On side
[0] Enhanced Functions: without
[1] Process Seal: PTFE process seal system with FKM/FPM gasket | 40bar max pressure, -40 to 150C temp range
[6] Probe: Single Cable - Ø4 mm (0.16") | 316L - 1.4404 | Counterweight Probe End
[0] Sensor Extension: without
[EA0] Process Connection: 1" NPT
[0] Calibration Certificate: without (accuracy ±2mm)
[0] Options: without
[1] Accessories/Tags: Weather Protection
Application Data:
Probe Length - 25ft
Media - Water
Operating Pressure - ambient
Operating Temperature - ambient
