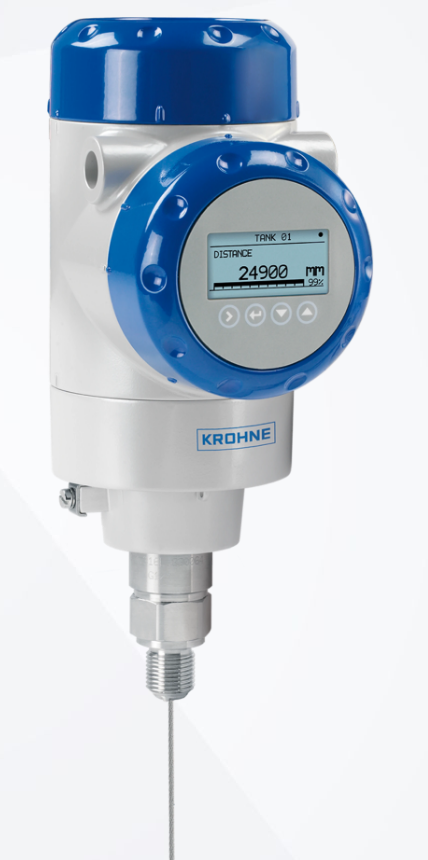

KROHNE Optiflex 7200 Guided Wave Radar

[VFAA40W] Optiflex 7200 Guided Wave TDR Level Transmitter

[B] Ex Approval: cQPSus XP-IS/DIP-IS CL I DIV 1 GP A-G + CL I Z1 AEx db ia/Ex db ia IIC T6…T* Gb + Z21 AEx ia tb/Ex ia tb IIIC T85°C…T*°C Db

[0] SIL Approvals: without

[0] ISO Construction Standards: without

[2] Converter Version: Compact version (aluminum housing - IP66/IP68)

[1] Outputs: 2-wire 4-20mA passive HART

[C] Cable Entry/Gland: 1/2 NPT Nickel-Plated Brass Adaptor / without

[61] Display: On side

[0] Enhanced Functions: without

[1] Process Seal: PTFE process seal system with FKM/FPM gasket | 40bar max pressure, -40 to 150C temp range

[6] Probe: Single Cable - Ø4 mm (0.16") | 316L - 1.4404 | Counterweight Probe End

[0] Sensor Extension: without

[EA0] Process Connection: 1" NPT

[0] Calibration Certificate: without (accuracy ±2mm)

[0] Options: without

[1] Accessories/Tags: Weather Protection

Application Data:

Probe Length - 25ft

Media - Water

Operating Pressure - ambient

Operating Temperature - ambient

This combination does not exist.
