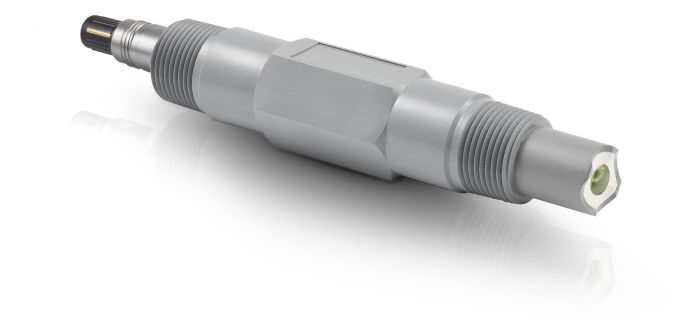

KROHNE Optisens Cond 1200 Conductivity Probe
The OPTISENS COND 1200 is a conductive conductivity sensor for general water and wastewater applications. The cost-effective general purpose sensor is particularly suitable for drinking water as well as wastewater with low contamination and low solid content. The wide range of cell constants combined with the robust PVDF sensor body makes this sensor also a perfect fit for steam water or cooling water applications. The OPTISENS COND 1200 also features an integrated Pt100 for temperature compensation. The conductivity sensor is equipped with a 4-pin right angle (Hirschmann) connector and operates with the MAC 100, MAC 300 or any suitable analytical transmitter.
Type COND 1200 (W)
Analog device for use with an analytical transducer
2-electrode conductive conductivity sensor with integrated Pt100
Measuring Range: 0.1 ... 2000 µS/cm (C=0.2)
Body Material: PVDF
Cell Material: Stainless Steel 1.4571/316Ti
Process Conditions:
PVDF: 0 ... 135°C
PP: 0 ... 90°C
16 bar at 25°C
Process Connection: G 3/4 Male Thread
Sensor Options: incl. Pt 100
Sensor-Cable-Connection 4-pin Connector (Hirschmann)
