LS-800-3-SS-SS-SPST-020-GR2-3, L0 = 50", L1=48"NO, L2=38"NO, L3=32"NO, Float Type 14569, Nema 4 Junction Box

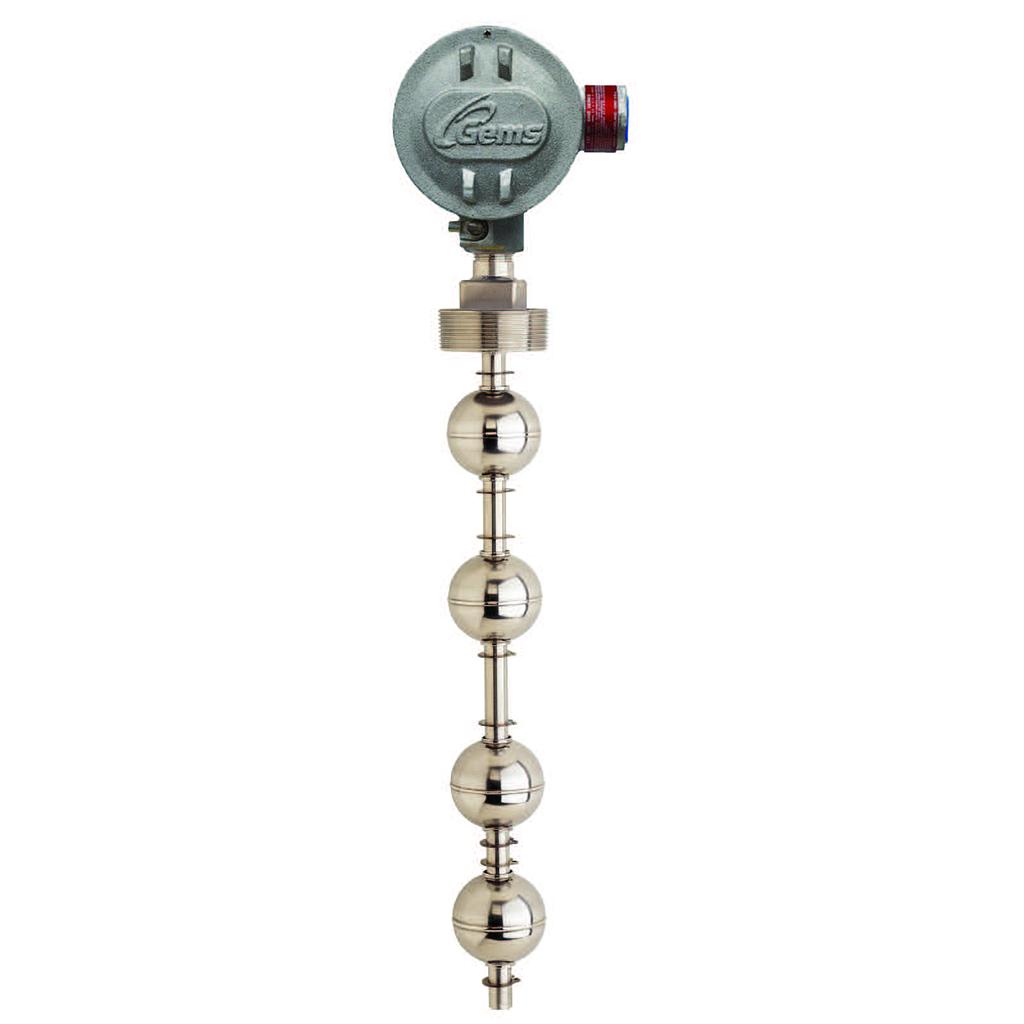

Representative photo. Please check item description for details.

LS-800-3-SS-SS-SPST-020-GR2-3, L0 = 50", L1=48"NO, L2=38"NO, L3=32"NO, Float Type 14569, Nema 4 Junction Box

https://www.branom.com/web/image/product.template/183343/image_1920?unique=17d9068
(0 review)

Technical Specifications
Series: Standard LS-800
Lead Time: 5 Day Delivery Options Only
Specific Gravity: 1.8
Max. Pressure: 100
Stem Length: 36" - 60"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 230
Stem Material: 316 Stainless Steel
Mounting Type: (3) 2" NPT
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 3
Electrical Connection: Nema 4 Junction Box
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: OIL
Float Stops: Collars


$ 1,419.16 1419.16 USD $ 1,419.16

$ 1,419.16

Not Available For Sale

  • Measurement Maximum
  • Measurement Minimum
  • NEMA / UL

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Technical Specifications
Series: Standard LS-800
Lead Time: 5 Day Delivery Options Only
Specific Gravity: 1.8
Max. Pressure: 100
Stem Length: 36" - 60"
Stem Construction: Tubing (for units < 72")
Operating Temp.: 230
Stem Material: 316 Stainless Steel
Mounting Type: (3) 2" NPT
Switch Type: SPST, 20VA
Wiring Group: Group 2 - Independent Return
Number of Levels: 3
Electrical Connection: Nema 4 Junction Box
Float Material: 316 Stainless Steel
Float Type: 316 SS (14569)
Media Type: OIL
Float Stops: Collars

Specifications

Measurement Maximum 0
Measurement Minimum 0
NEMA / UL NEMA 4X
