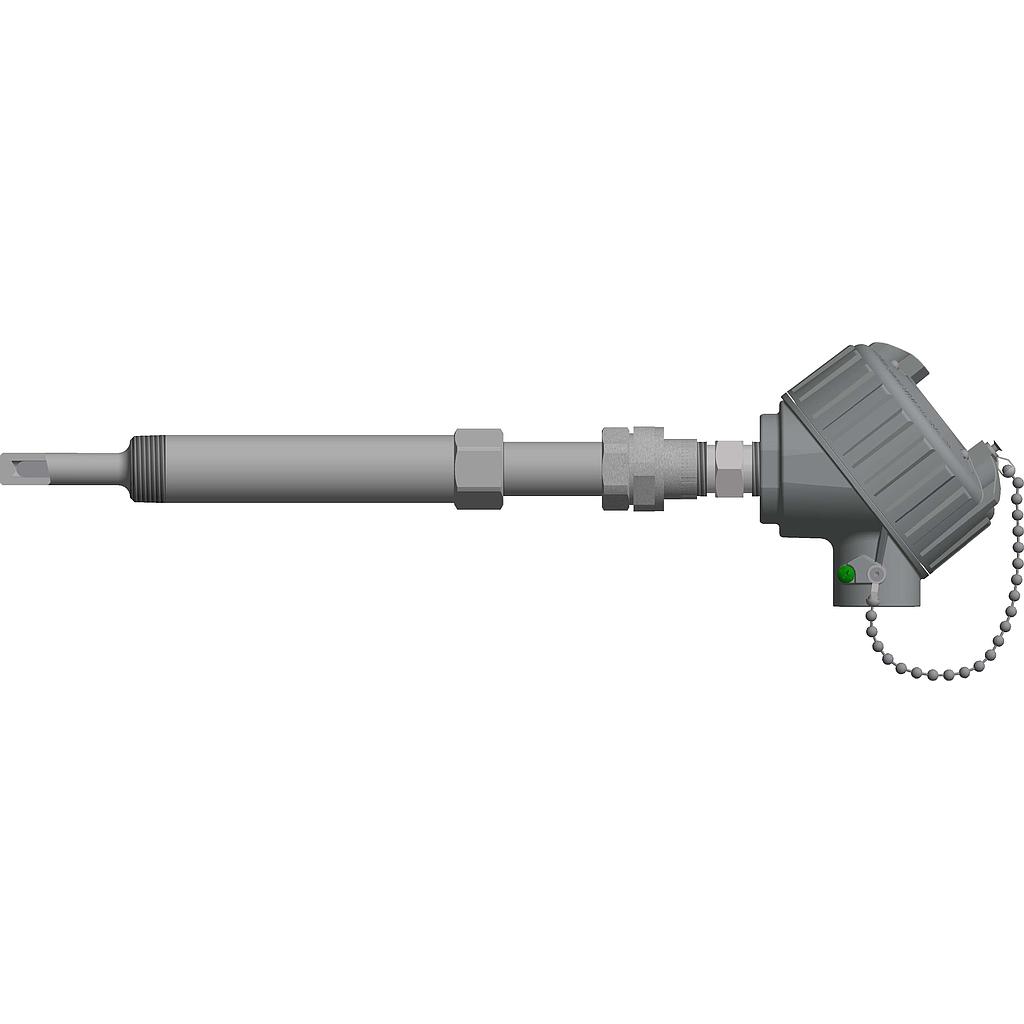

Pyromation Hazardous Location, EP Appr RTD, Single 3-Wire, 1/4" OD, Aluminum Head, 7.5" Thermowell (SS, 3/4 NPT)
FM/CSA Explosion Proof Approved Assembly
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 7(1/2) Inches
U Dimension: 2 Inches
T Dimension: 4 Inches
Customer Specified Part # on Thermowell
Spring-loaded Element
1/2 Inch NPT Stainless Steel Explosion Proof Union/Nipple
Extension E Length: 4 Inches
Aluminum Explosion/ Flame Proof Head
FM/CSA Explosion Proof Approved Assembly
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 7(1/2) Inches
U Dimension: 2 Inches
T Dimension: 4 Inches
Customer Specified Part # on Thermowell
Spring-loaded Element
1/2 Inch NPT Stainless Steel Explosion Proof Union/Nipple
Extension E Length: 4 Inches
Aluminum Explosion/ Flame Proof Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Union/Nipple |
| RTD: Output | 100 Ω |
| RTD: Enclosure | Explosion Proof |
