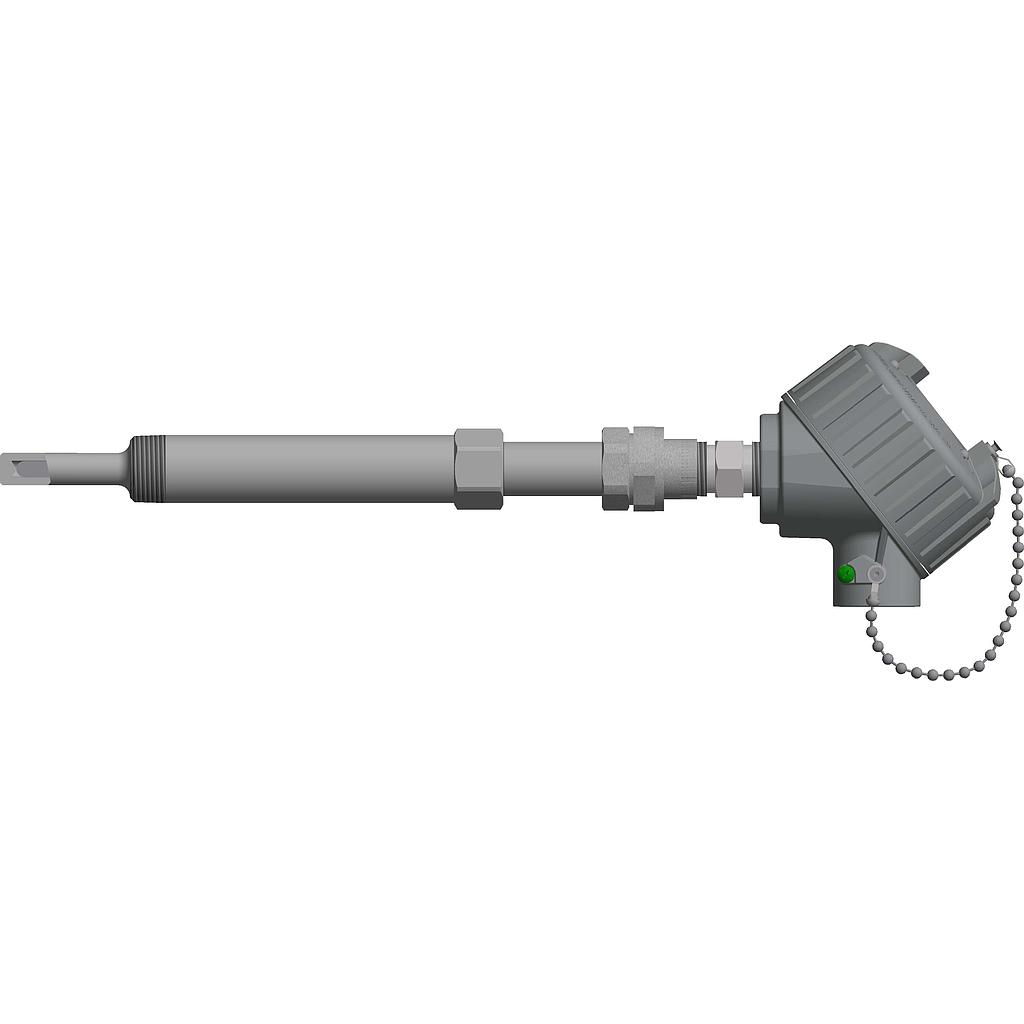

Pyromation HazLoc EP Approved RTD, Single 3-Wire, 1/4" OD x 7.5" Thermowell (SS, 3/4 NPT), Aluminum Head
FM/CSA Explosion Proof Approved Assembly
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 7(1/2) Inches
U Dimension: 2 Inches
T Dimension: 4 Inches
Customer Specified Part # on Thermowell
Spring-loaded Element
1/2 Inch NPT Stainless Steel Explosion Proof Union/Nipple
Extension E Length: 4 Inches
Aluminum Explosion/ Flame Proof Head
FM/CSA Explosion Proof Approved Assembly
Single Element RTD
100 ohm Platinum
Temperature Coefficient 0.00385 ohms per Degree C
Tolerance Grade B
Temperature Range -200 to 600 Degrees C
1/4 Inch Diameter 316 Stainless Steel Sheath
3 Wire
Thermowell: Standard Duty Threaded (NPT) - 0.260 Bore
316 Stainless Steel
3/4 Inch NPT Pipe Size
S Dimension: 7(1/2) Inches
U Dimension: 2 Inches
T Dimension: 4 Inches
Customer Specified Part # on Thermowell
Spring-loaded Element
1/2 Inch NPT Stainless Steel Explosion Proof Union/Nipple
Extension E Length: 4 Inches
Aluminum Explosion/ Flame Proof Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Accuracy | Grade B |
| RTD: Circuit Type | Single 3-Wire |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Union/Nipple, Explosion Proof, Spring-Loaded |
| RTD: Output | Pl100 Ω |
| RTD: Length (Probe/Sheath/TW) | 7.5 in |
| RTD: Stem Diameter | 1/4 in |
| RTD: Wetted Material | SS |
| RTD: Has Thermowell | Yes |
| RTD: Cover / Head Material | Aluminum, Explosion-Proof |
| RTD: Min Temp | -328 °F |
| RTD: Max Temp | 1112 °F |
