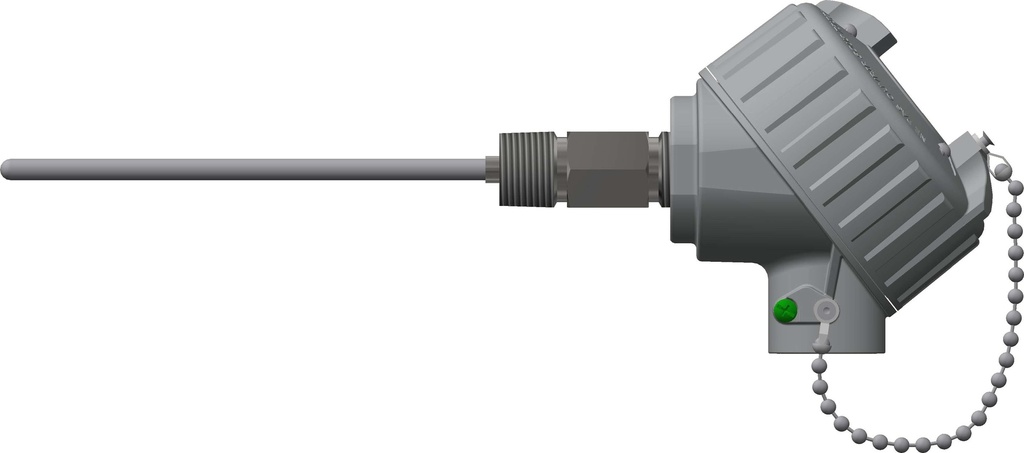

Pyromation Hazardous Location, EP Appr. RTD, Single 3-Wire, 1/4" OD, 6" SS Sheath, Aluminum Head, Spring-Loaded w/Flame Path
• FM/CSA Explosion Proof Approved Assembly
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 6 Inches
• Spring-loaded Flame Path Fitting
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Aluminum Explosion/ Flame Proof Head
• FM/CSA Explosion Proof Approved Assembly
• Single Element RTD
• 100 ohm Platinum
• Temperature Coefficient 0.00385 ohms per Degree C
• Tolerance Grade B
• Temperature Range -200 to 200 Degrees C
• 1/4 Inch Diameter 316 Stainless Steel Sheath
• 3 Wire
• Sheath Length: 6 Inches
• Spring-loaded Flame Path Fitting
• 1/2 Inch x 1/2 Inch NPT Stainless Steel Hex Nipple
• Aluminum Explosion/ Flame Proof Head
Specifications
| RTD: Brand | Pyromation |
| RTD: Type | Probe w/Connection Head |
| RTD: Connection Size | 1/2 NPT |
| RTD: Connection Type | Hex Nipple |
| RTD: Output | 100 Ω |
| RTD: Enclosure | Explosion Proof |
