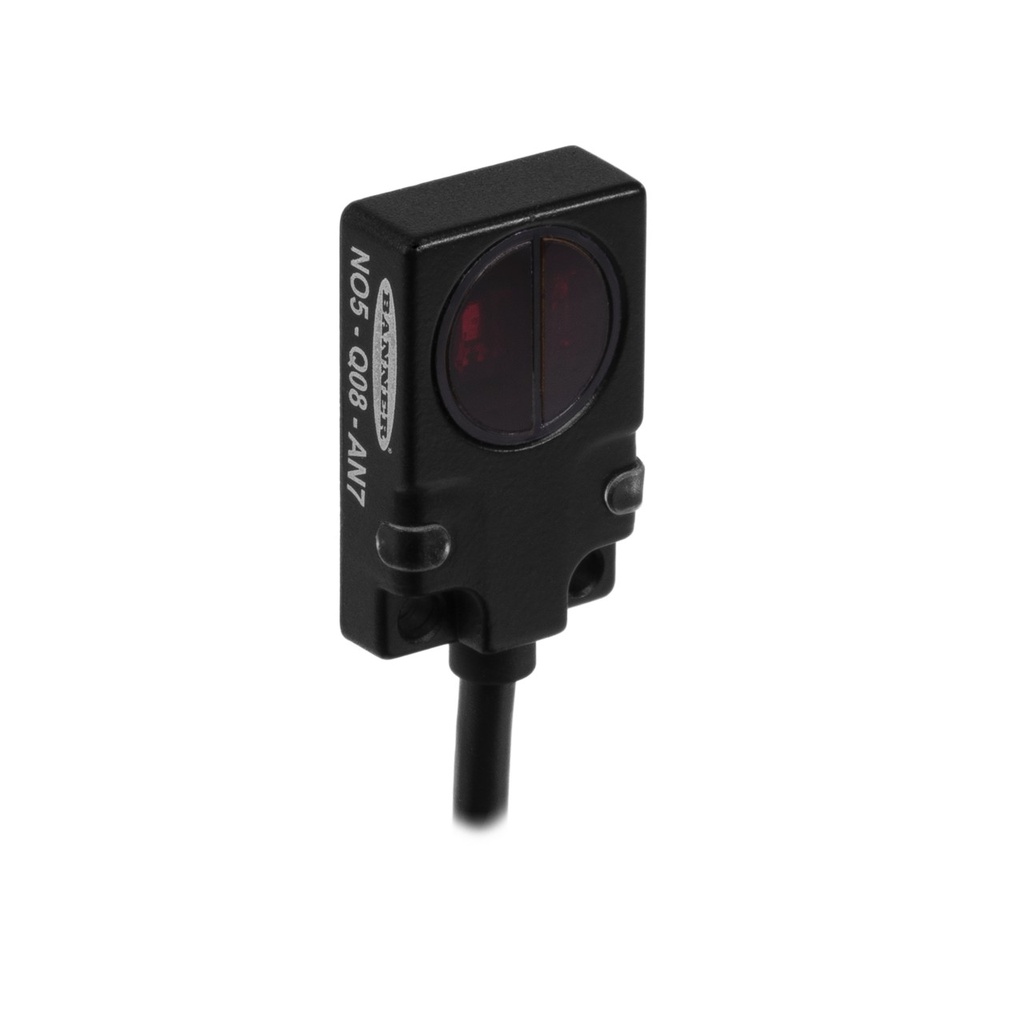

Q08 Series: Diffuse (NO5-Q08-AN7)

https://www.branom.com/web/image/product.template/18259/image_1920?unique=df497b9
(0 review)

Features:

  • Q08 Series: Diffuse
  • Range: 2.5 mm to 61 mm
  • Input: 10-30 V dc
  • Output: Light Operate
  • NPN
  • 2 m (6.5 ft) Cable
  • Power: DC
  • Max Operating Temperature: 50 °C
  • Lens Material: N/A
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 880
  • Housing Style: Rectangular
  • Max Sensing Distance: 61 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Alloy Die-Cast
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
