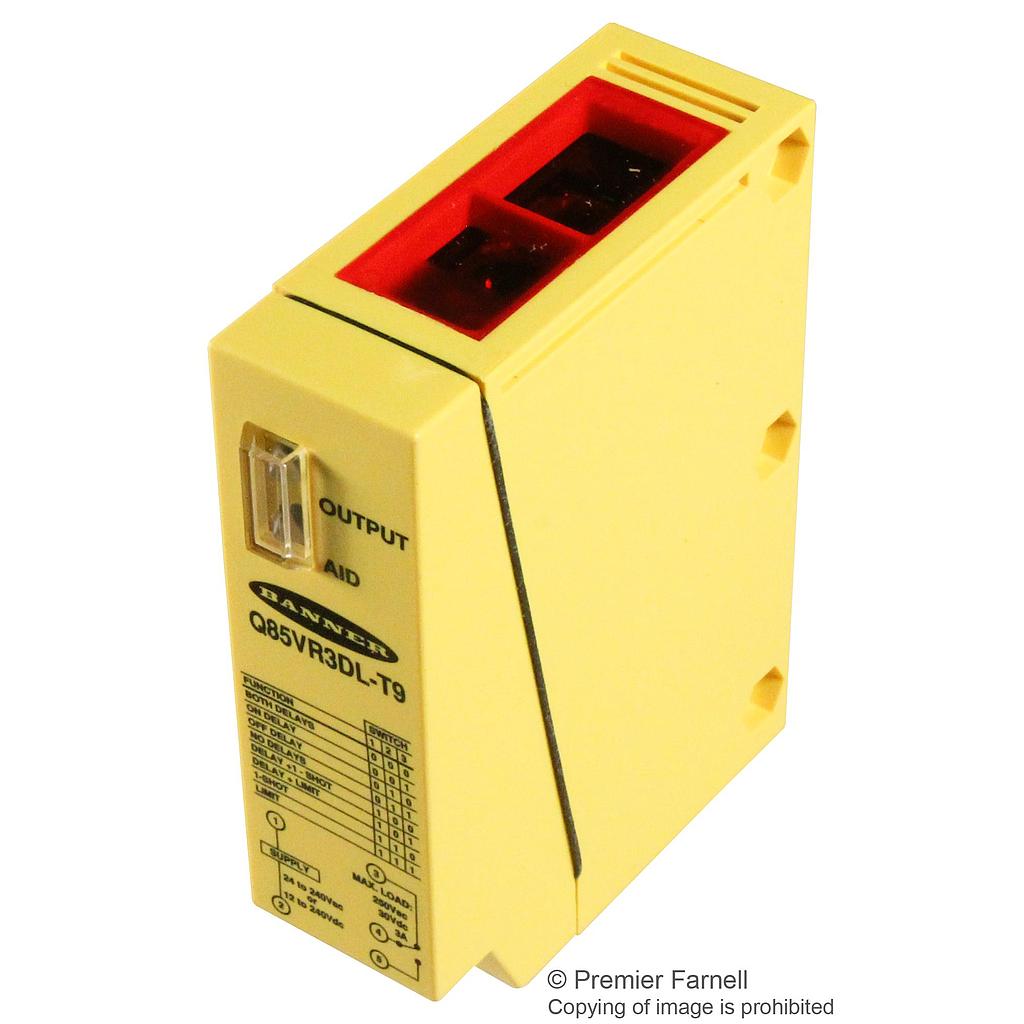

Q85 Series: Diffuse with Output Timer (Q85VR3DL-T9)

https://www.branom.com/web/image/product.template/20177/image_1920?unique=df497b9
(0 review)

Features:

  • Q85 Series: Diffuse with Output Timer
  • Range: 1 m
  • Input: 12-240 V dc / 24-240 V ac
  • Output: SPDT Electromechanical Relay
  • Wiring Chamber
  • Min Operating Temperature: -25 °C
  • Max Operating Temperature: 55 °C
  • Lens Material: Acrylic
  • Power Supply: 12-240 VDC or 24-240 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1000
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 880
  • Housing Style: Rectangular
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Number of Pins: 5
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: E/M Relay
  • Connection Type: Terminal
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Indicator Type: LED
