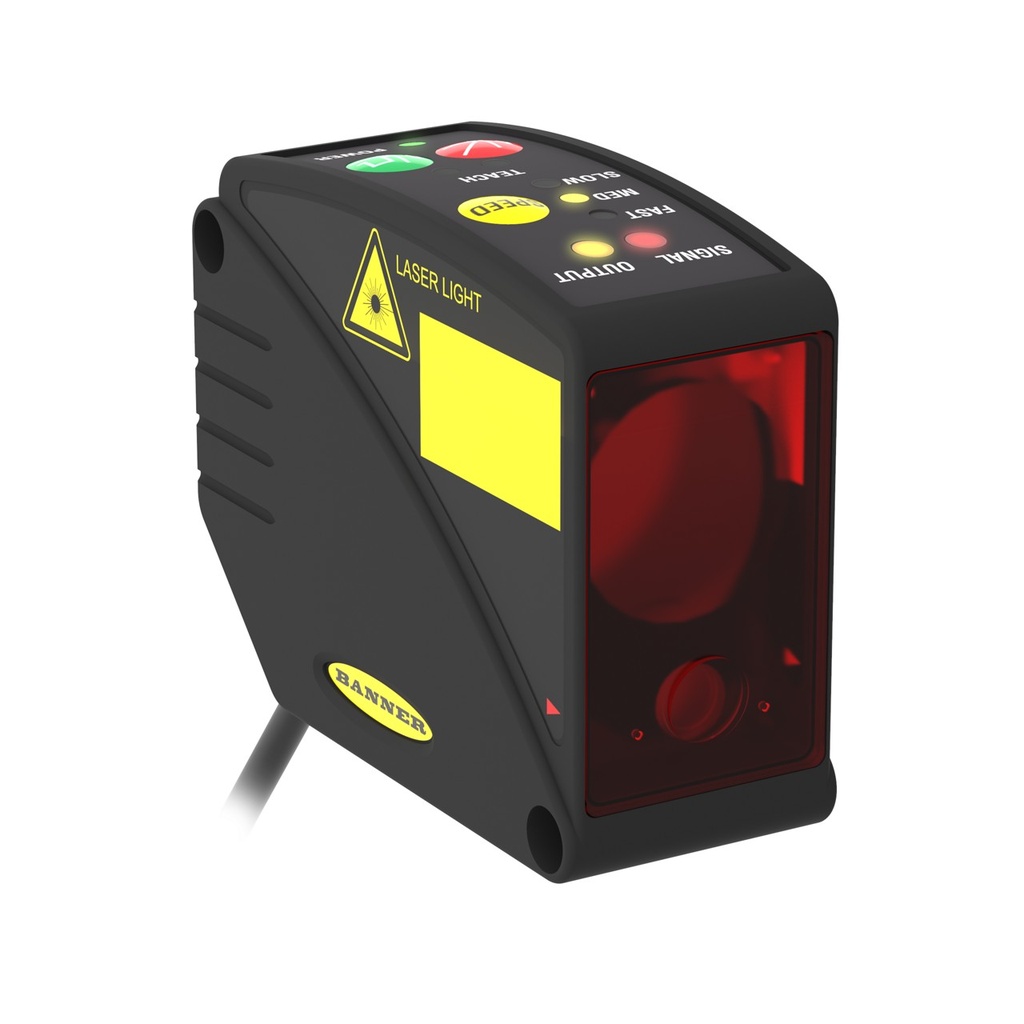

Representative photo. Please check item description for details.

LT3 Series: Laser Diffuse Time-Of-Flight Sensor (LT3BD)

https://www.branom.com/web/image/product.template/33086/image_1920?unique=72388dd
(0 review)

Features:

  • LT3 Series: Laser Diffuse Time-Of-Flight Sensor
  • Range: 300 mm to 5 m
  • 12-24 V dc
  • Outputs: Discrete: 2 PNP or NPN
  • 2 m (6.5 ft) Cable
    • Power: DC
  • Max Operating Temperature: 50 °C
  • Power Supply: 12-24 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 5000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS
  • Laser Classification: Class 2
  • Feature: Quick Disconnect: No
  • Number of Pins: 8
  • Adjustments: Push Button; Remote Teach
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 1 ms
  • Min Sensing Distance: 300 mm
  • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
  • Feature: Remote Teach: Yes
  • Connection Type: Flying Leads
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Feature: Laser Control: Yes
  • Max Ambient Light: 5000 lux

$ 2,246.00 2246.0 USD $ 2,246.00

$ 2,246.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • LT3 Series: Laser Diffuse Time-Of-Flight Sensor
    • Range: 300 mm to 5 m
    • 12-24 V dc
    • Outputs: Discrete: 2 PNP or NPN
    • 2 m (6.5 ft) Cable
      • Power: DC
    • Max Operating Temperature: 50 °C
    • Power Supply: 12-24 VDC
    • Ingress Protection: IP67
    • Sensing Beam: Visible Red Laser
    • Housing Style: Rectangular
    • Max Sensing Distance: 5000 mm
    • Sensing Mode (Detailed): Time of Flight
    • Sensing Mode (General): Proximity
    • Device Type: Sensor
    • Housing Material_: ABS
    • Laser Classification: Class 2
    • Feature: Quick Disconnect: No
    • Number of Pins: 8
    • Adjustments: Push Button; Remote Teach
    • Feature: Timing (Hold/Delay): No
    • Input/Output: Discrete
    • Min Response Time: 1 ms
    • Min Sensing Distance: 300 mm
    • Discrete (Switched) Outputs: 2 NPN/PNP Configurable
    • Feature: Remote Teach: Yes
    • Connection Type: Flying Leads
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 2 m
    • Feature: Laser Control: Yes
    • Max Ambient Light: 5000 lux
