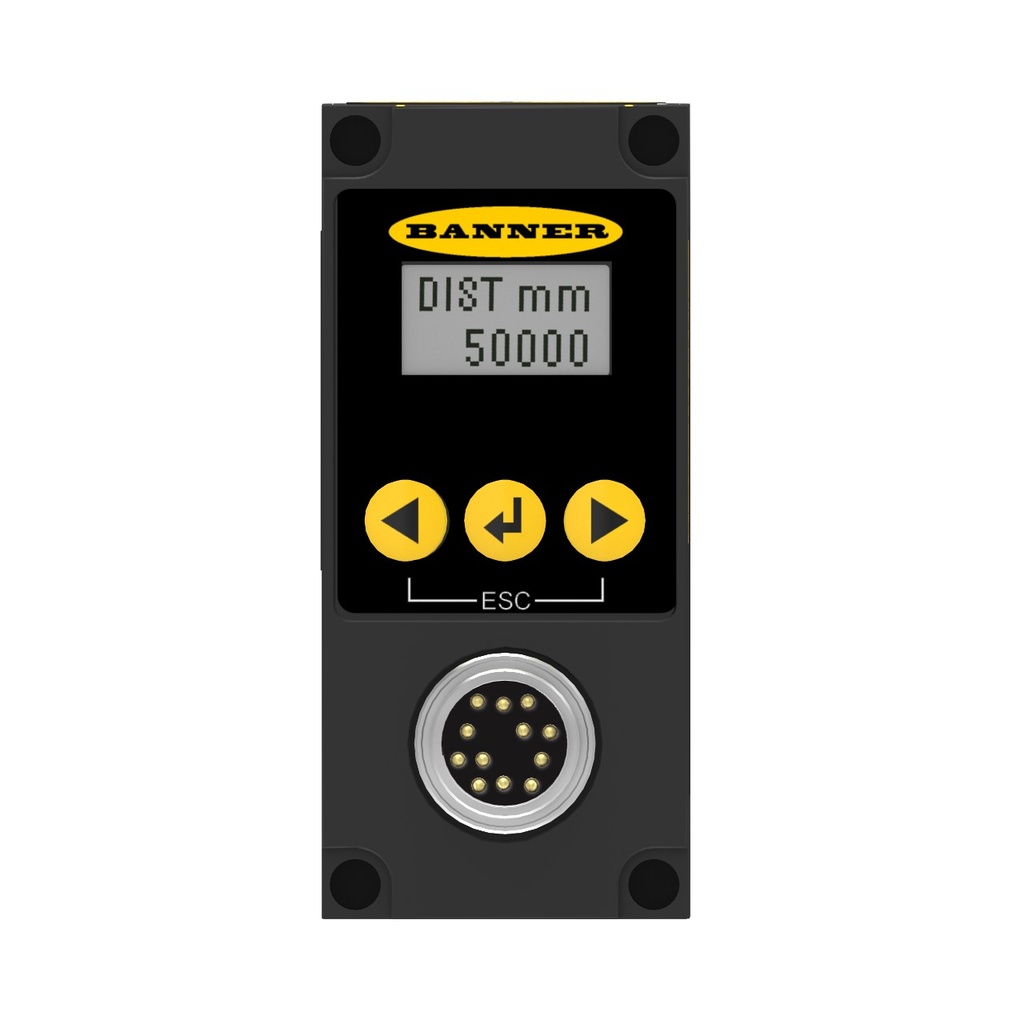

Representative photo. Please check item description for details.

LT7 Series: Laser Diffuse Time-of-Flight Sensor (LT7PIDQ)

https://www.branom.com/web/image/product.template/35852/image_1920?unique=3c0a30c
(0 review)

Features:

  • LT7 Series: Laser Diffuse Time-of-Flight Sensor
  • Range: 500 mm to 10 m
  • 18
  • 30 V dc
  • Outputs: Discrete 2 PNP Analog 4-20 mA RS-422 or SSI
  • M16 12-pin Quick-Disconnect
    • Power: DC
  • Min Operating Temperature: -10 °C
  • Max Operating Temperature: 50 °C
  • Power Supply: 18-30 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Infrared Laser
  • Housing Style: Rectangular
  • Max Sensing Distance: 10000 mm
  • Sensing Mode (Detailed): Time of Flight
  • Sensing Mode (General): Proximity
  • Device Type: Sensor
  • Housing Material_: ABS
  • Laser Classification: Class 1 & 2
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M16
  • Number of Pins: 12
  • Adjustments: Push Button (s)
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Analog & Discrete & Serial
  • Min Response Time: 12 ms
  • Min Sensing Distance: 500 mm
  • Discrete (Switched) Outputs: 2 PNP
  • Feature: Remote Teach: Yes
  • Feature: Analog Output(s): 4 to 20 mA
  • Connection Type: Integral QD
  • Feature: Health/Marginal Signal Output: Yes
  • Feature: Laser Control: Yes
