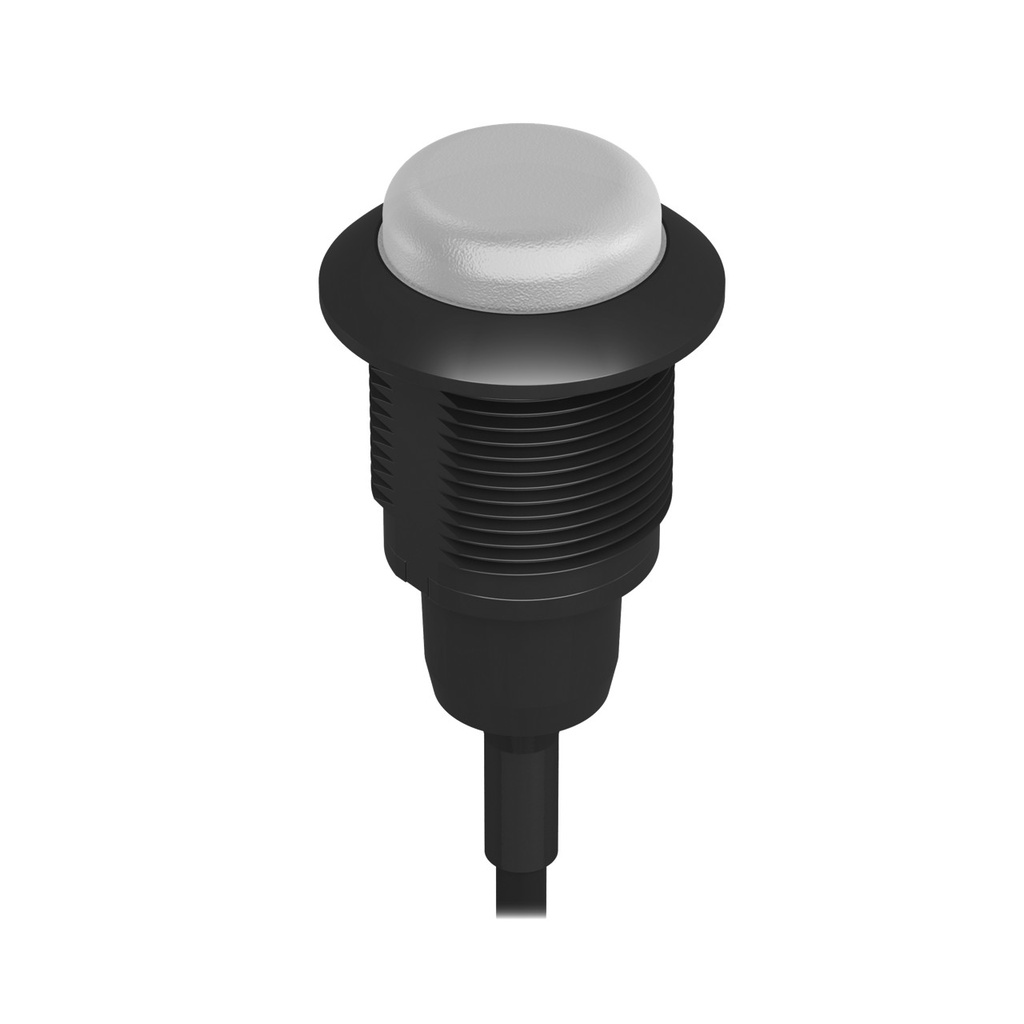

Representative photo. Please check item description for details.

S18 Daylight Visible EZ-LIGHT - 18 mm - IP67 (S18DLGRBP)

https://www.branom.com/web/image/product.template/82128/image_1920?unique=025af79
(0 review)

Features:

  • S18 Daylight Visible EZ-LIGHT
  • 18 mm
  • IP67
  • Three Color: Green Red Blue
  • 10-30 V dc PNP Input
  • 4 Wire 2 m Cable
    • Power: DC
  • Feature: Display Lighting: No
  • Max Current Color: 25 mA
  • Power Source: VDC
  • Ingress Protection: IP67/69
  • Housing Style: Barrel Mount - Flat Window
  • Feature: Washdown Rated: Yes
  • Feature: IO Link: No
  • Physical Dimensions: 23.5 x 35.7 mm
  • Feature: Indication: Yes
  • Supply Voltage: 10-30 VDC
  • Color Option 2: Red
  • Feature: Quick Disconnect: No
  • Color Technology: Standard LED
  • Feature: Audible: No
  • Color 1 - Wavelength/Color Temp/Coordinates: 525 nm
  • Housing Color: Black
  • Color Input Control: Individual (One wire/color, same number of colors as input wires)
  • Multi-Color Device: Single Color On
  • Number of Colors / Segments: 3
  • Color 3 - Wavelength/Color Temp/Coordinates: 470 nm
  • Lumens Color 2: 1.4
  • Product Size (mm): 18 mm
  • Color 2 - Wavelength/Color Temp/Coordinates: 625 nm
  • Max Input Response Time (ms): 1 ms
  • Feature: Chemical Resistant: No
  • Indication Intensity: High Brightness & Daylight Visible
  • NEMA / UL: NEMA/UL 4X/13
  • Max Input Response Time: 1 ms

$ 57.00 57.0 USD $ 57.00

$ 57.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
