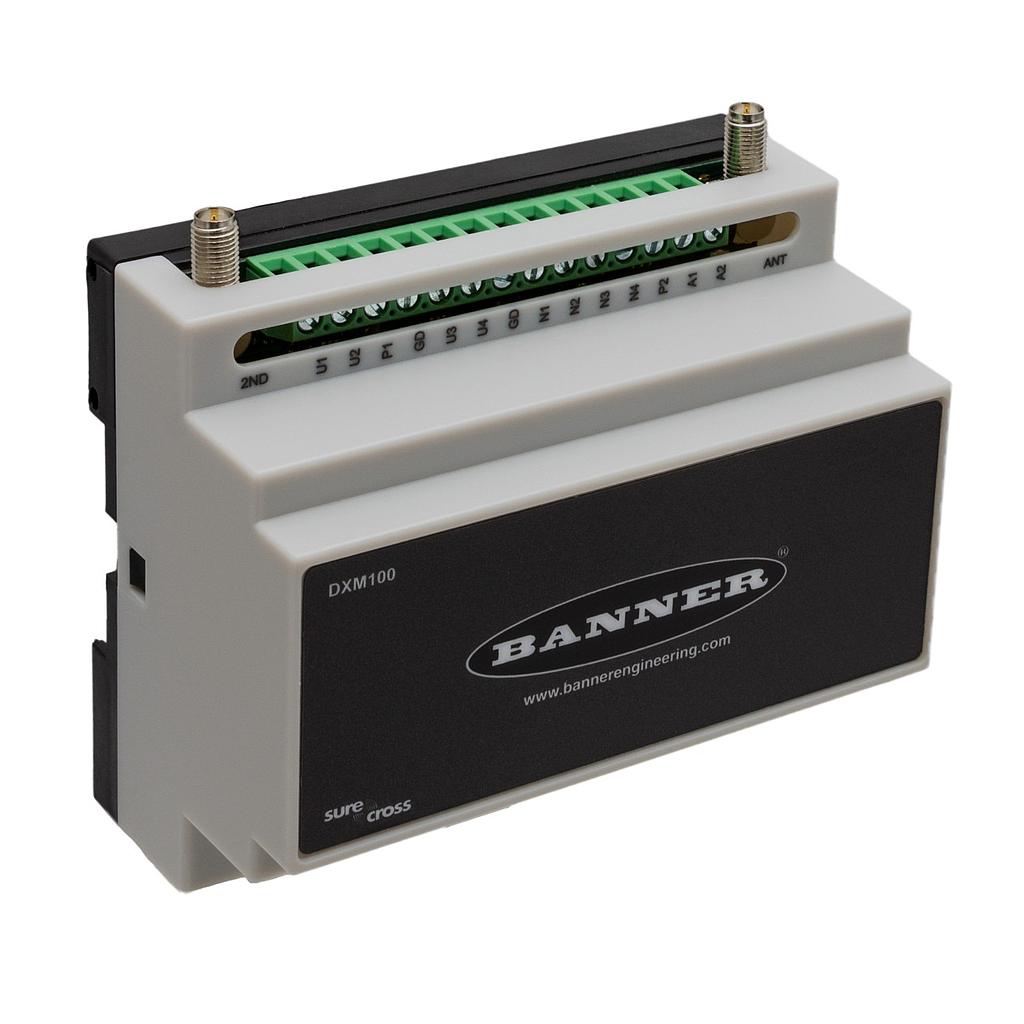

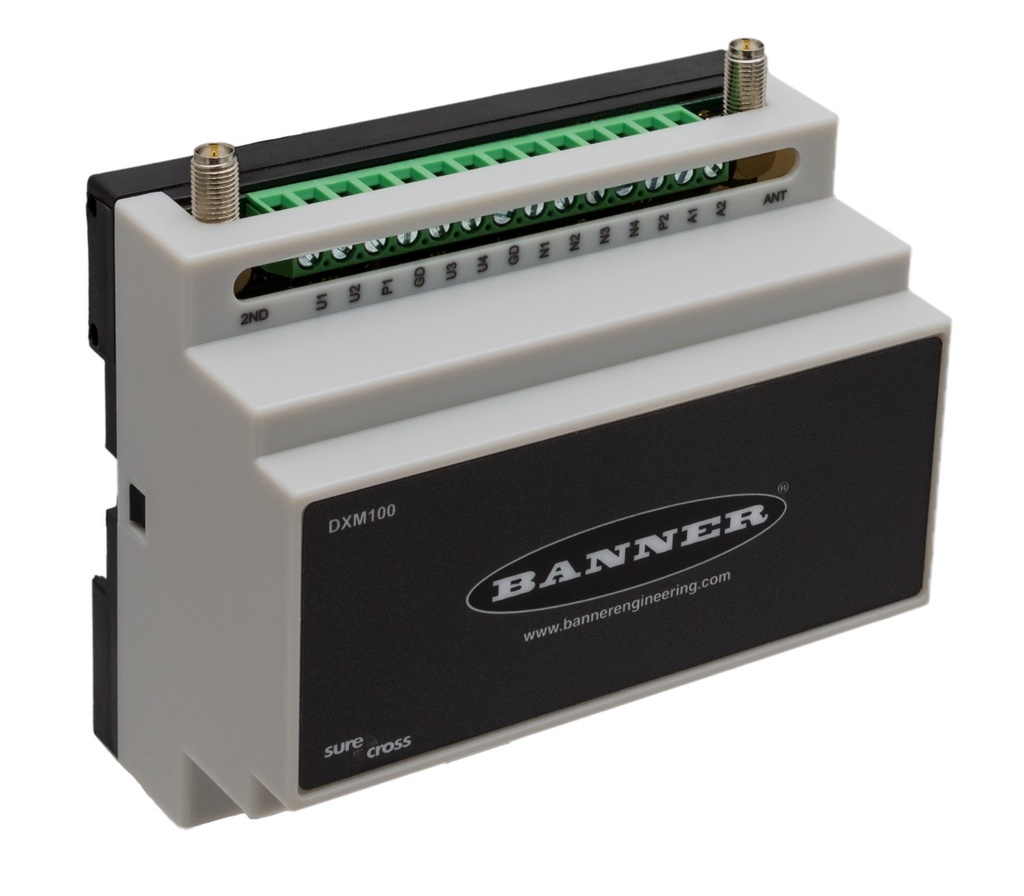

DXM100 Modbus Slave Device (DXM100-S1)

https://www.branom.com/web/image/product.template/82201/image_1920?unique=025af79
(0 review)

Features:

  • DXM100 Modbus Slave Device
  • I/O Base Board Only
  • Inputs: 4 Universal
  • Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power
  • RS485
    • Power: DC
  • Feature: Discrete Outputs: Yes
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 60 °C
  • Power Supply: 12-30 VDC
  • Ingress Protection: IP20
  • Housing Style: External Terminals
  • Device Type: Modbus Slave Device
  • Feature: RS-232: No
  • Feature: RS-485: Yes
  • Feature: Has EtherNet/IP: No
  • Feature: Modbus/TCP: No
  • Feature: Hazardous Area: No
  • Feature: Modbus RTU: Yes
  • Physical Dimensions: 100 mm
  • Feature: Wireless: No
  • Input/Output: Analog & Discrete
  • Relative Humidity: 95%
  • Output Details: 4 NMOS Discrete, 2 Selectable Analog
  • Input Details: (4) Universal Inputs
  • Feature: Discrete Inputs: Yes
  • Feature: Analog Input(s): Yes
  • Ethernet Connector Type: N/A
  • Feature: Analog Output(s): Yes
  • NEMA / UL: NEMA 1

$ 427.00 427.0 USD $ 427.00

$ 427.00

Not Available For Sale

    This combination does not exist.
