Distributed I/O

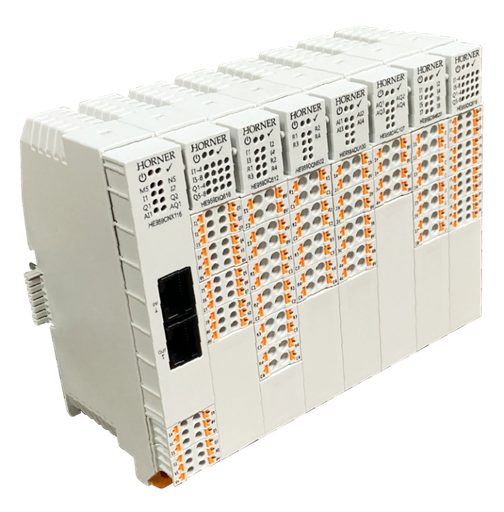

Horner APG LLC
OCS-I/O 8 Analog Inputs module. 16-bit resolution, selectable channel-by-channel for 4-20mA or 0-10V

HE959ADC270

$ 462.83 462.83 USD
MADE TO ORDER
Horner APG LLC
End of Life - SmartBlock, 4 Analog Outputs (0-10V, 0 -5V, 0-20mA, 4-20mA) 14-bit resolution. Channel-by-Channel voltage/current selection for all channels. Moves to HE579DAC207, or OCS-I/O base + HE959DAC107

HE579DAC107


MADE TO ORDER

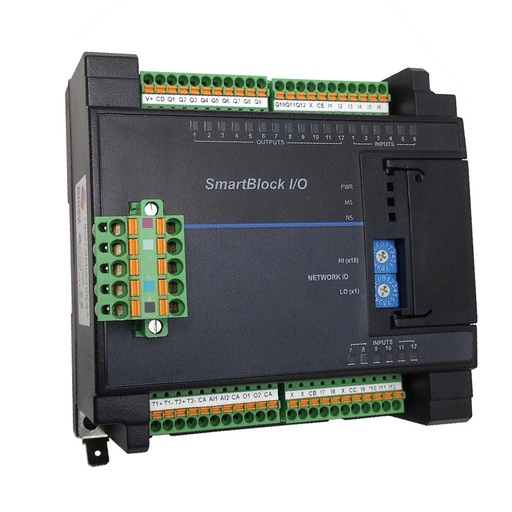

Horner APG LLC
MAT -SmartBlock, Same as above but supporting 12V relay coils

HE569DQM212-12


MADE TO ORDER
Horner APG LLC
MAT -SmartBlock, 8 High Current, Socketed Relays. Form C (NO/NC) Mechanical Relays with 7A rating (30VDC, 250Vac). Load connections made with Removable Terminal Strips

HE569DQM212


MADE TO ORDER
Horner APG LLC
End of Life - SmartBlock, 8 High Current, Socketed SSRs (DC). Form A (NO) Solid State Relays with 2A rating (2A, 35VDC). Load connections made with Removable Terminal Strips

HE569DQM205


MADE TO ORDER
Horner APG LLC
SmartRail, 4 channel Thermocouple Inputs, 0.1°C (typical). Supports J, K, T, R. For spring-clamp terminals, add HE599TRM011

HE599THM100

$ 637.10 637.1 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 4 channel RTD Inputs, 0.1°C. Supports Pt-100. For spring-clamp terminals, add HE599TRM015

HE599RTD100

$ 695.97 695.97 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 2 channel Analog Inputs + 2 channel Analog Outputs. 12-bit resolution, channel-by-channel selectable for 0-20mA, 4-20mA, 0-10V. For spring-clamp terminals, add HE599TRM011

HE599MIX116

$ 567.85 567.85 USD
MADE TO ORDER

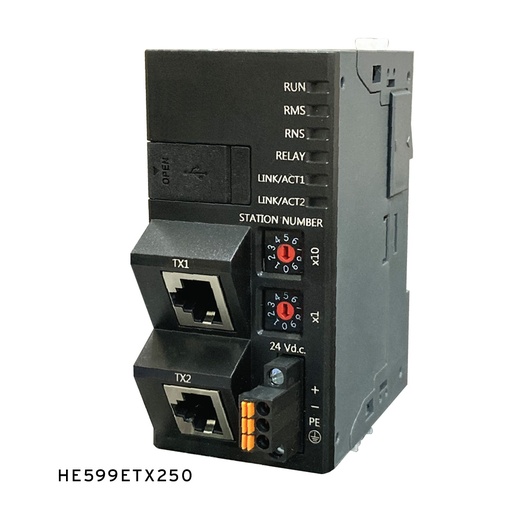

Horner APG LLC
SmartRail Ethernet I/O Base with Modbus TCP and Ethernet/IP support. Features built-in unmanaged switch. Supports up to 8 I/O modules drawing up to 1.5A @ 5VDC.  Supports up to 256 digital and 32 analog I/O per base.

HE599ETX250

$ 795.23 795.23 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 32 DC Outputs (24VDC, pos logic, 0.2A). Recommend SmartLink Terminal Strip (HE599TRM040) and Expansion Cable (HE599CBL040 - 0.5m or HE599CBL240 - 2.0m) OR SmartLink Relay Output Strip (HE599RLY037) and Expansion Cable (HE599CBL037 - 0.5m or HE599CBL237 - 2.0m)

HE599DQM706

$ 520.53 520.53 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 16 DC Outputs (24VDC, pos logic, 0.5A). For spring-clamp terminals, add HE599TRM010 & HE599TRM008

HE599DQM606

$ 382.03 382.03 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 16 Relay Outputs (125VDC or 250Vac), 2A. For spring-clamp terminals, add (Qty 2) HE599TRM009

HE599DQM602

$ 382.03 382.03 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 8 DC Outputs (24VDC, pos logic, 0.5A). For spring-clamp terminals, add HE599TRM010

HE599DQM506

$ 206.60 206.6 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 8 Relay Outputs (125VDC or 250Vac), 2A. For spring-clamp terminals, add HE599TRM009

HE599DQM502

$ 255.08 255.08 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 8 DC Inputs (24VDC, pos/neg logic). 8 Relay Outputs (2A). For spring-clamp terminals, add HE599TRM009 (Qty 2)

HE599DIQ512

$ 361.26 361.26 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 32 DC Inputs (24VDC pos/neg logic). SmartLink Expansion Cable and Terminal Strip recommended

HE599DIM710

$ 401.65 401.65 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 16 DC Inputs (12VDC pos/neg logic). For spring-clamp terminals, add HE-599TRM010 & HE599TRM008

HE599DIM610-03

$ 397.03 397.03 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 16 DC Inputs (24VDC pos/neg logic). For spring-clamp terminals, add HE599TRM010 & HE599TRM008

HE599DIM610

$ 265.46 265.46 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 8 DC Inputs (24VDC pos/neg logic). For spring-clamp terminals, add HE599TRM010

HE599DIM510

$ 206.60 206.6 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 4 channel Analog Outputs, 12-bit. Supports 0-20mA, 4-20mA. For spring-clamp terminals, add HE599TRM011

HE599DAC106

$ 627.87 627.87 USD
MADE TO ORDER
Horner APG LLC
SmartRail, 4 channel Analog Outputs, 12-bit. Supports 0-10V. For spring-clamp terminals, add HE599TRM011

HE599DAC101

$ 627.87 627.87 USD
MADE TO ORDER
Horner APG LLC
SmartRail, CAN Open Base. Compatible with all XL Controllers with CAN Open Firmware

HE599COS100

$ 477.83 477.83 USD
MADE TO ORDER
Horner APG LLC
SmartRail, SmartRail CsCAN I/O Base - 1MB version Recommended for larger systems as Expansion I/O, with 8x normal CsCAN bandwidth, but limited to 25m distance. Not recommended for XLe, XLt, or X2

HE599CNX100-1MB


MADE TO ORDER
Horner APG LLC
SmartRail, CsCAN Base. Recommended for larger systems as Expansion I/O. Standard CsCAN bandwidth (1x), supporting up to 500m network distance.

HE599CNX100

$ 477.83 477.83 USD
MADE TO ORDER
