[DC10-20S0-H000] Watlow Din-A-Mite Style C, 1 phase, 1 controlled leg, Line & Load Voltage 20= 200 to 208VA (ac)

Watlow Electric Manufacturing Company

Watlow Din-A-Mite Style C, 1 phase, 1 controlled leg, Line & Load Voltage 20= 200 to 208VA (ac)
DC10-20S0-H000

$ 730.00

MADE TO ORDER

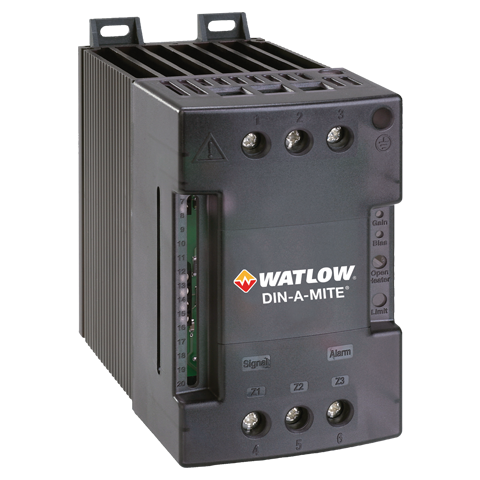

[DC10-24S0-H000] Watlow Din-A-Mite Style C, 1 phase, 1 controlled leg, Line & Load Voltage 24 = 120 to 240VA (ac)

Watlow Electric Manufacturing Company

Watlow Din-A-Mite Style C, 1 phase, 1 controlled leg, Line & Load Voltage 24 = 120 to 240VA (ac)
DC10-24S0-H000

$ 730.00

MADE TO ORDER

[BGS79J6S4] Watlow 2" Screw Plug Tubular Heater, 1000W, 9.50" 'B' Dimension, 1PH 2 Element, Dual Voltage 240/120VAC lower voltage, Type 4 Thermostat 30-110F Range, GP Enclosure

Watlow Electric Manufacturing Company

Watlow 2" Screw Plug Tubular Heater, 1000W, 9.50" 'B' Dimension, 1PH 2 Element, Dual Voltage 240/120VAC lower voltage, Type 4 Thermostat 30-110F Range, GP Enclosure
BGS79J6S4

$ 840.00

MADE TO ORDER

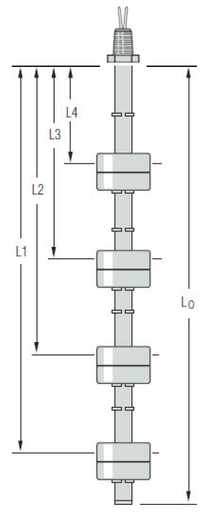

[W1128332] Gems LS-700-1-SS-SS-SPST-020-GR1-4, LS-700 Series, 1/8"NPT, 316SS Stem and Float, L1=11.25" N.C., L2 = 7.25" N.C., L3 = 5.25" N.C., L4 = 1.25" N.C.

Setra Systems LLC (dba Gems Sensors)

Gems LS-700-1-SS-SS-SPST-020-GR1-4, LS-700 Series, 1/8"NPT, 316SS Stem and Float, L1=11.25" N.C., L2 = 7.25" N.C., L3 = 5.25" N.C., L4 = 1.25" N.C.
W1128332

$ 752.65

MADE TO ORDER

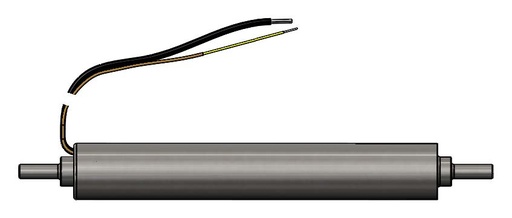

[FLC-6] Watlow Fluent In-Line Heater, 1" O.D. x 6.5" Length, 120V, 500W, 1/4" Inlet & Outlet Fitting, Internal Baffle, 12" Type K T/C

Watlow Electric Manufacturing Company

Watlow Fluent In-Line Heater, 1" O.D. x 6.5" Length, 120V, 500W, 1/4" Inlet & Outlet Fitting, Internal Baffle, 12" Type K T/C
FLC-6

$ 628.50

MADE TO ORDER

[W1038979] PRESSURE SWITCH 25-100PSI 1/8"NPTM FACTORY SET 65PSI FALLING (W1109738) OLD P/N:212659/W1114224 PS41-30-2MNB-C-HC-V-FS65PSIF (10 MOQ)

Setra Systems LLC (dba Gems Sensors)

PRESSURE SWITCH 25-100PSI 1/8"NPTM FACTORY SET 65PSI FALLING (W1109738) OLD P/N:212659/W1114224 PS41-30-2MNB-C-HC-V-FS65PSIF (10 MOQ)
W1038979

$ 99.50

MADE TO ORDER
