[136G8774] Danfoss VLT Soft Starter, MCD 600 Series, 3-Phase, 144A, 200-525 VAC, IP00 w/Int. Bypass Contactor, Frame Size 2, MCD60144BT5S2X00CV2

Danfoss LLC

Danfoss VLT Soft Starter, MCD 600 Series, 3-Phase, 144A, 200-525 VAC, IP00 w/Int. Bypass Contactor, Frame Size 2, MCD60144BT5S2X00CV2
136G8774

$ 2,644.96

MADE TO ORDER

[10-04S-S-B-06S-2F] Noshok Type 10 Bolted Diaphragm Seal, 1/2" NPT SS Upper, 3/4" NPT SS Lower Housings, SS Diaphragm, NBR O-Ring, 1/4" NPT Flushing Port, 2000 PSI MAX

Noshok Inc

Noshok Type 10 Bolted Diaphragm Seal, 1/2" NPT SS Upper, 3/4" NPT SS Lower Housings, SS Diaphragm, NBR O-Ring, 1/4" NPT Flushing Port, 2000 PSI MAX
10-04S-S-B-06S-2F

$ 629.53

MADE TO ORDER

[R1T185L483-006-12C-18-T3024-2] Pyromation RTD Assembly, Single 3-Wire, 1/4" OD x 6" Sheath, 24" FPM Leads (2" Split, 1/4" Stripped), No Heat Shrink

Pyromation Inc.

Pyromation RTD Assembly, Single 3-Wire, 1/4" OD x 6" Sheath, 24" FPM Leads (2" Split, 1/4" Stripped), No Heat Shrink
R1T185L483-006-12C-18-T3024-2

$ 149.00

MADE TO ORDER

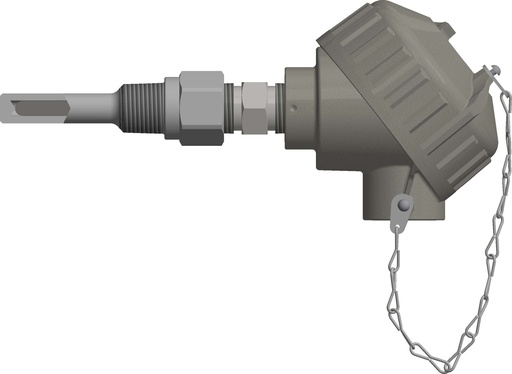

[R1T185L483-S4C0408-SC-8HN34,T31-385U-S(0-350)F] Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD x 4" Thermowell (SS, 1/2 NPT), Cast Iron Head, T31 Transmitter

Pyromation Inc.

Pyromation Spring-Loaded RTD, Single 3-Wire, 1/4" OD x 4" Thermowell (SS, 1/2 NPT), Cast Iron Head, T31 Transmitter
R1T185L483-S4C0408-SC-8HN34,T31-385U-S(0-350)F

$ 461.00

MADE TO ORDER

[E1H-R90-P6-F2] Barksdale E1H Dia-Seal Piston Pressure Switch, Housed, 15 Amps @ 125/250/480 VAC; 0.05 A @ 125 VDC; 0.03 A @ 250 VDC ADJUSTABLE DEADBAND, 3 to 90 psi, Nickel Plated Fitting, 1/8"NPT Internal with 1/2"NPT External Threads

Barksdale Inc Dba Dynalco Controls Corp

Barksdale E1H Dia-Seal Piston Pressure Switch, Housed, 15 Amps @ 125/250/480 VAC; 0.05 A @ 125 VDC; 0.03 A @ 250 VDC ADJUSTABLE DEADBAND, 3 to 90 psi, Nickel Plated Fitting, 1/8"NPT Internal with 1/2"NPT External Threads
E1H-R90-P6-F2

$ 445.10

MADE TO ORDER

[50329111] 230.15 Series Stainless Steel Industrial Pressure Gauge, 0-300PSI, 1/4" Swivel Male Face, 9/16-18 UNF Center Back Mount

Wika Instrument Lp

230.15 Series Stainless Steel Industrial Pressure Gauge, 0-300PSI, 1/4" Swivel Male Face, 9/16-18 UNF Center Back Mount
50329111

$ 212.50

MADE TO ORDER
