[HE-UNITEMPCON] DIN Rail Temperature Transmitter. Accepts temperature Input signals (Thermocouple J/K/T/E/N/R/S/B, PT100/1000 RTD, NTC, 0-50mV and converts to 4-20mA/0-10V output signal.

Horner APG LLC

DIN Rail Temperature Transmitter. Accepts temperature Input signals (Thermocouple J/K/T/E/N/R/S/B, PT100/1000 RTD, NTC, 0-50mV and converts to 4-20mA/0-10V output signal.
HE-UNITEMPCON

$ 131.58

MADE TO ORDER

[HE-BRKT-100] Two-piece bracket with removable faceplate for use with Micro OCS X2/X4/X5. 4 hole pattern for panel backplate mounting in either portrait or landscape orientation.

Horner APG LLC

Two-piece bracket with removable faceplate for use with Micro OCS X2/X4/X5. 4 hole pattern for panel backplate mounting in either portrait or landscape orientation.
HE-BRKT-100

$ 131.58

MADE TO ORDER

[HE-ACX105] Alternate I/O Terminal Blocks (spring clamp) for 105 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired

Horner APG LLC

Alternate I/O Terminal Blocks (spring clamp) for 105 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired
HE-ACX105

$ 132.73

MADE TO ORDER

[HE-ACX104] Alternate I/O Terminal Blocks (spring clamp) for 104 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired

Horner APG LLC

Alternate I/O Terminal Blocks (spring clamp) for 104 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired
HE-ACX104

$ 140.81

MADE TO ORDER

[HE-ACX103] Alternate I/O Terminal Blocks (spring clamp) for 103 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired

Horner APG LLC

Alternate I/O Terminal Blocks (spring clamp) for 103 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired
HE-ACX103

$ 102.73

MADE TO ORDER

[HE-ACX102] Alternate I/O Terminal Blocks (spring clamp) for 102 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired

Horner APG LLC

Alternate I/O Terminal Blocks (spring clamp) for 102 I/O Board. Recommended for applications when XLe or XLt is mounted on DIN-rail, or applications where spring clamp plugs are desired
HE-ACX102

$ 102.73

MADE TO ORDER

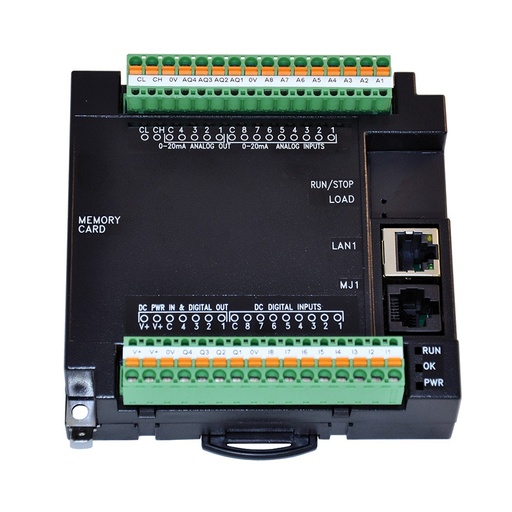

[HE-RCC972] Currently only available as (-75) variant RCC Logic controller with eight (8) Digital inputs compatible with 12V/24VDC - four (4) DC Outputs - .5A per point - Eight (8) 12-bit Analog Inputs O-20mA and four (4) 12-bit Analog outputs 0-20mA

Horner APG LLC

Currently only available as (-75) variant RCC Logic controller with eight (8) Digital inputs compatible with 12V/24VDC - four (4) DC Outputs - .5A per point - Eight (8) 12-bit Analog Inputs O-20mA and four (4) 12-bit Analog outputs 0-20mA
HE-RCC972

$ 997.20

MADE TO ORDER

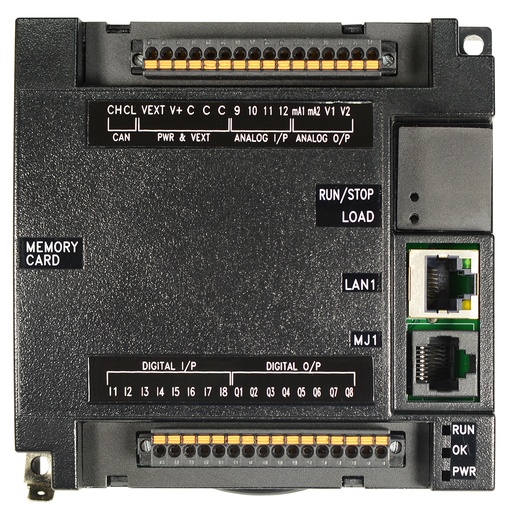

[HE-RCC8842-75] RCC Logic controller without display. 8 digital DC inputs, 8 digital outputs, 4 analog input, 2 analog outputs, 1 half-duplex RS-485, 1 RS-232, CAN, 10/100 Ethernet. (non-UL)

Horner APG LLC

RCC Logic controller without display. 8 digital DC inputs, 8 digital outputs, 4 analog input, 2 analog outputs, 1 half-duplex RS-485, 1 RS-232, CAN, 10/100 Ethernet. (non-UL)
HE-RCC8842-75

$ 1,090.70

MADE TO ORDER

Public Pricelist (v2)
