[R5T185L483-004-00-15-T3120-2] Pyromation RTD Assembly, Single 3-Wire, 1/4" OD x 4" Sheath, 120" FPM Leads (2" Split, 1/4" Stripped) w/Relief Spring

Pyromation Inc.

Pyromation RTD Assembly, Single 3-Wire, 1/4" OD x 4" Sheath, 120" FPM Leads (2" Split, 1/4" Stripped) w/Relief Spring
R5T185L483-004-00-15-T3120-2

$ 181.00

MADE TO ORDER

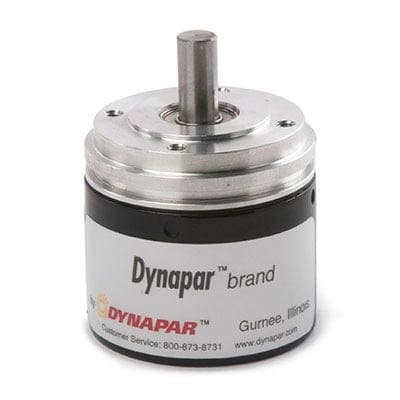

[E14100000204] Dynapar Encoder, Bidirectional, 1000 PPR, 1/4” Shaft Sealed Bearing, Single Ended, 5 Vdc, 15FT Cable

Dynapar Corporation

Dynapar Encoder, Bidirectional, 1000 PPR, 1/4” Shaft Sealed Bearing, Single Ended, 5 Vdc, 15FT Cable
E14100000204

$ 728.00

MADE TO ORDER

[DHH63BGN9A449] DH Series Regulator, Spring Loaded, Handknob, 316SS Body, 0-150 PSI Outlet, 0-500 PSI Inlet, Buna-N O-Ring and Valve Seat, Gylon Diaphragm, Non-Venting, 1" NPTF In/Out Ports, No Gauge Port

Tescom Corporation

DH Series Regulator, Spring Loaded, Handknob, 316SS Body, 0-150 PSI Outlet, 0-500 PSI Inlet, Buna-N O-Ring and Valve Seat, Gylon Diaphragm, Non-Venting, 1" NPTF In/Out Ports, No Gauge Port
DHH63BGN9A449

$ 2,305.00

MADE TO ORDER

[J48U-005(3/4)-304-15-T3A042-4] TYPE J THERMOCOUPLE, 34" LENGTH, UNGROUNDED, 316SS SHEATH 5 3/4" LENGTH, 90 DEGREE BEND, SPRING RELIEF, LEADWIRE FLUOROPOLYMER INSULATION- STRANDED CONDUCTOR-FLEX ARMOR, EXT WIRE 42", MALE PLUG

Pyromation Inc.

TYPE J THERMOCOUPLE, 34" LENGTH, UNGROUNDED, 316SS SHEATH 5 3/4" LENGTH, 90 DEGREE BEND, SPRING RELIEF, LEADWIRE FLUOROPOLYMER INSULATION- STRANDED CONDUCTOR-FLEX ARMOR, EXT WIRE 42", MALE PLUG
J48U-005(3/4)-304-15-T3A042-4

$ 75.10

MADE TO ORDER

[227434] PS75-50-4MGZ-C-HC-FS1400PSIF Pressure Switch, 500-1750PSI, 1/4""BSPM, W1080733 (10 MOQ)

Setra Systems LLC (dba Gems Sensors)

PS75-50-4MGZ-C-HC-FS1400PSIF Pressure Switch, 500-1750PSI, 1/4""BSPM, W1080733 (10 MOQ)
227434

$ 183.61

MADE TO ORDER

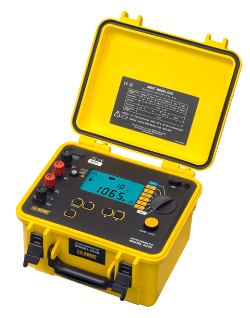

[2129.80] AEMC Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test, includes 10A Kelvin Clips (Hippo-Cat #1017.84), 1AKelvin Probes Spring Loaded (Cat #2118.73), and DataView® Software)

Chauvin Arnoux Inc dba AEMC Instruments

AEMC Micro-Ohmmeter Model 6240 (10A, Instantaneous, Continuous, Multiple Test, includes 10A Kelvin Clips (Hippo-Cat #1017.84), 1AKelvin Probes Spring Loaded (Cat #2118.73), and DataView® Software)
2129.80

$ 3,815.57

MADE TO ORDER

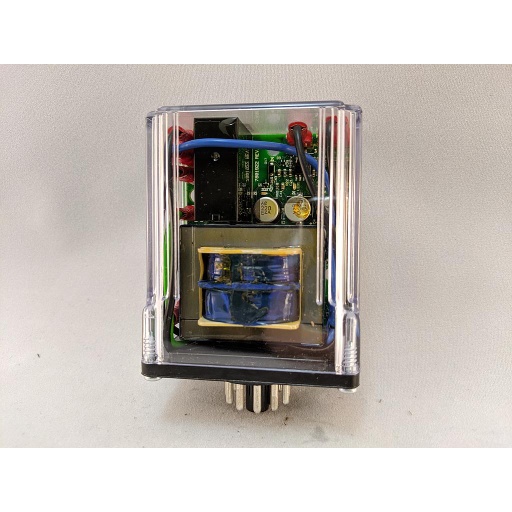

[26NMB1B0A] Warrick Series 26NM Low Water Cutoff - Plug In Module, Non-Powered Contacts, 10k Ohm Sensitivity, 11 Pin Octal DIN Rail Socket, 120 VAC, Reset Button, Power Outage Test Feature

Setra Systems LLC (dba Gems Sensors)

Warrick Series 26NM Low Water Cutoff - Plug In Module, Non-Powered Contacts, 10k Ohm Sensitivity, 11 Pin Octal DIN Rail Socket, 120 VAC, Reset Button, Power Outage Test Feature
26NMB1B0A

$ 432.33

MADE TO ORDER

[26MB1B0A] Low-Water Cutoff Level Control, 10k Ohm Sensitivity, 120VAC, 11 Pin Octal DIN Mount, No Enclosure, Reset, Pushbutton, Power Outage, Test Feature

Setra Systems LLC (dba Gems Sensors)

Low-Water Cutoff Level Control, 10k Ohm Sensitivity, 120VAC, 11 Pin Octal DIN Mount, No Enclosure, Reset, Pushbutton, Power Outage, Test Feature
26MB1B0A

$ 409.83

MADE TO ORDER
