[EB243PJPRWBX] Weksler Duplex Pressure Gauge 4 1/2" 0-300PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, O-Ring Connection, Rear(Back), White Dial, Cleans for General Applications, Flush Mounting Ring Kit -Not Required

Engineered Specialty Products aka Weksler Glass

Weksler Duplex Pressure Gauge 4 1/2" 0-300PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, O-Ring Connection, Rear(Back), White Dial, Cleans for General Applications, Flush Mounting Ring Kit -Not Required
EB243PJPRWBX

$ 4,828.22

MADE TO ORDER

[EA443PFFRWBO] Weksler Pressure Gauge 4 1/2" 0-100PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, Flareless Connection, Rear- Back Connection, White Dial, Cleaned for General Applications, Flush Mounting Ring Kit - Required

Engineered Specialty Products aka Weksler Glass

Weksler Pressure Gauge 4 1/2" 0-100PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, Flareless Connection, Rear- Back Connection, White Dial, Cleaned for General Applications, Flush Mounting Ring Kit - Required
EA443PFFRWBO

$ 2,000.56

MADE TO ORDER

[EA243PHFLWBO] Weksler Pressure Gauge 4 1/2" 0-200PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, Flareless Connection, Lower Connection, White Dial, Cleans for General Applications, Flush Mounting Ring Kit - Required

Engineered Specialty Products aka Weksler Glass

Weksler Pressure Gauge 4 1/2" 0-200PSI, Case Style 3- Flush Panel Mounting or Surface Mounting, Flareless Connection, Lower Connection, White Dial, Cleans for General Applications, Flush Mounting Ring Kit - Required
EA243PHFLWBO

$ 1,662.17

MADE TO ORDER

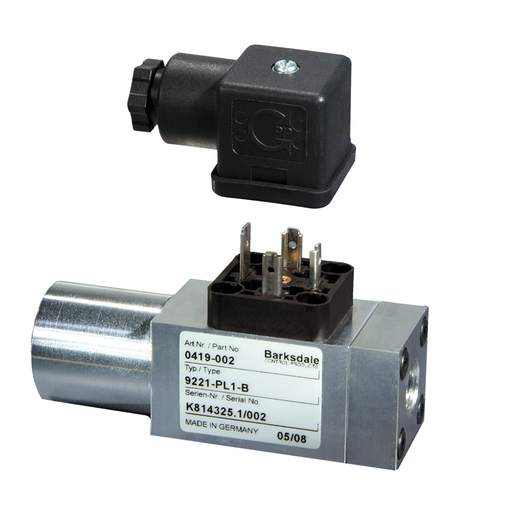

[8AD1-PL1-B] Barksdale Series 8000 Compact Pressure Switch, , 1/4"NPT Female, Silver Contacts SPDT, Plug Din 43650 A, IP65, Buna-N Seals, Dec:- 43-2320 PSI Increasing;- 75-2610 psi

Barksdale Inc Dba Dynalco Controls Corp

Barksdale Series 8000 Compact Pressure Switch, , 1/4"NPT Female, Silver Contacts SPDT, Plug Din 43650 A, IP65, Buna-N Seals, Dec:- 43-2320 PSI Increasing;- 75-2610 psi
8AD1-PL1-B

$ 279.83

MADE TO ORDER

[20072491] Daniel SEALING BAR AND CLAMPING BAR KIT 4" 150-600 NACE TRIM, INCLUDES: (1) #9 SEALING BAR (3/4" X 1-3/8" X 8") (1) #9A SEALING BAR GASKET (5) #11 CLAMPING BAR SCREW (1/2" - 13 UNC X 1-1/4" HALF DOG PT) (1) #12 CLAMPING BAR (1/2" X 1-3/4" X 8-3/4")

Daniel Measurement and Control

Daniel SEALING BAR AND CLAMPING BAR KIT 4" 150-600 NACE TRIM, INCLUDES: (1) #9 SEALING BAR (3/4" X 1-3/8" X 8") (1) #9A SEALING BAR GASKET (5) #11 CLAMPING BAR SCREW (1/2" - 13 UNC X 1-1/4" HALF DOG PT) (1) #12 CLAMPING BAR (1/2" X 1-3/4" X 8-3/4")
20072491

$ 358.33

MADE TO ORDER

[J402-612-QC1] United Electric Pressure Switch, Dual Switch Output, 303 SS Piston with Buna N O-Ring, 303 SS 1/4"NPT Female Bottom Connection, 200-3000 PSI Range + Cert of Accuracy

United Electric Controls Co.

United Electric Pressure Switch, Dual Switch Output, 303 SS Piston with Buna N O-Ring, 303 SS 1/4"NPT Female Bottom Connection, 200-3000 PSI Range + Cert of Accuracy
J402-612-QC1

$ 607.95

MADE TO ORDER
