[TW20A-19-6.6-A-16"-A15-FF-25-BL-A-PFA cover] Okazaki 304SS Thermowell, With PFA Sleeve, U=16inches, ASME B16.5 1" FF 150Class Flange, 0.26 Bore, 0.728" O.D.

Ari Industries

Okazaki 304SS Thermowell, With PFA Sleeve, U=16inches, ASME B16.5 1" FF 150Class Flange, 0.26 Bore, 0.728" O.D.
TW20A-19-6.6-A-16"-A15-FF-25-BL-A-PFA cover

$ 3,407.69

MADE TO ORDER

[816469] Banner Cordset: Double-Ended M12; 5-pin Straight Female; 5-pin Straight Male Connectors; 31 m (101.7 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts Shielded (BC-M12F5-M12M5-22-31-STP)

Banner Engineering Corp

Banner Cordset: Double-Ended M12; 5-pin Straight Female; 5-pin Straight Male Connectors; 31 m (101.7 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nuts Shielded (BC-M12F5-M12M5-22-31-STP)
816469

$ 217.00

MADE TO ORDER

[814180] Banner Cordset: Double-Ended M12; 5-pin Straight Female A-Code; 5-pin Straight Male A-Code Connectors; 0.16 m (0.52 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nuts (BC-M12F5-M12M5-22-0.16M)

Banner Engineering Corp

Banner Cordset: Double-Ended M12; 5-pin Straight Female A-Code; 5-pin Straight Male A-Code Connectors; 0.16 m (0.52 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nuts (BC-M12F5-M12M5-22-0.16M)
814180

$ 46.00

MADE TO ORDER

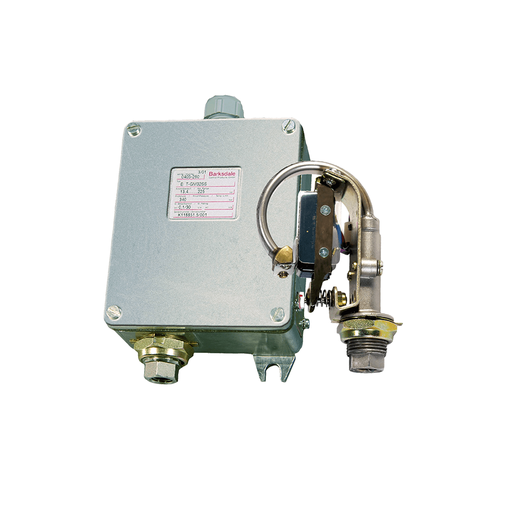

[B1T-S32SS] Barksdale B1T Bourdon Tube Pressure Switch, Housed Single Setpoint, 15 Amps @ 125/250/480 VAC, 160 to 3200 psi, SS, 1/4 NPT, SS Bourdon Tube

Barksdale Inc Dba Dynalco Controls Corp

Barksdale B1T Bourdon Tube Pressure Switch, Housed Single Setpoint, 15 Amps @ 125/250/480 VAC, 160 to 3200 psi, SS, 1/4 NPT, SS Bourdon Tube
B1T-S32SS

$ 927.71

MADE TO ORDER

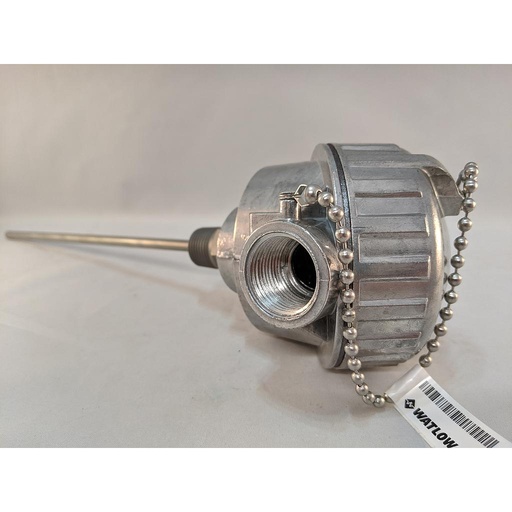

[RRJEF0K060BB000] Watlow RR Style RTD, Single 3-Wire, 1/4" OD x 6" SS Mineral-Insulated Sheath, Aluminum Head

Watlow Electric Manufacturing Company

Watlow RR Style RTD, Single 3-Wire, 1/4" OD x 6" SS Mineral-Insulated Sheath, Aluminum Head
RRJEF0K060BB000

$ 174.96

MADE TO ORDER
